NRSZ rotary valves, type 4,10,20 and 30

Continuously empty combustible dust from your dust collector

The NRSZ type rotary valve is used to transfer material between two separate systems. In pneumatic conveying systems discharge is usually required from the filter or cyclone to the silo, at atmospheric pressure. This is an ideal application for the NRS type rotary valve.

The rotary valve can be used for most material types, though the particle size must not exceed 13 x 13 x 13 mm (.5 x .5 x .5 in).

The NRSZ type rotary valve is modular and robustly constructed in heavy steel plate. The rotor of each module is equipped with an elastic clutch. This reduces the possibility of damage in use and maximises the life of the unit. The rotor has special rubber seals, which provide an effective air lock between the inlet and the outlet.

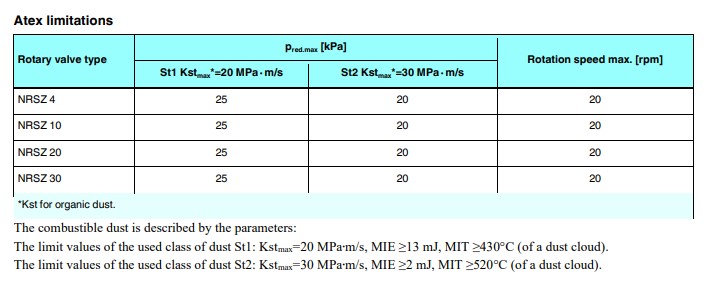

This type of rotary valve is a certified version for explosive dusts type St1 and St2. The NRSZ is a protective system according to ATEX definition.

Explosive dusts type St1 may have Kst up to 200 bar m/s.

Explosive dusts type St2 may have Kst up to 300 bar m/s.

技术参数
应用 粉尘
证书 CE, EX
安装 室外, 室内
材料 Heavy steel plate
工作温度 -20 to 50 Deg. C.
适用于易爆粉尘 Yes

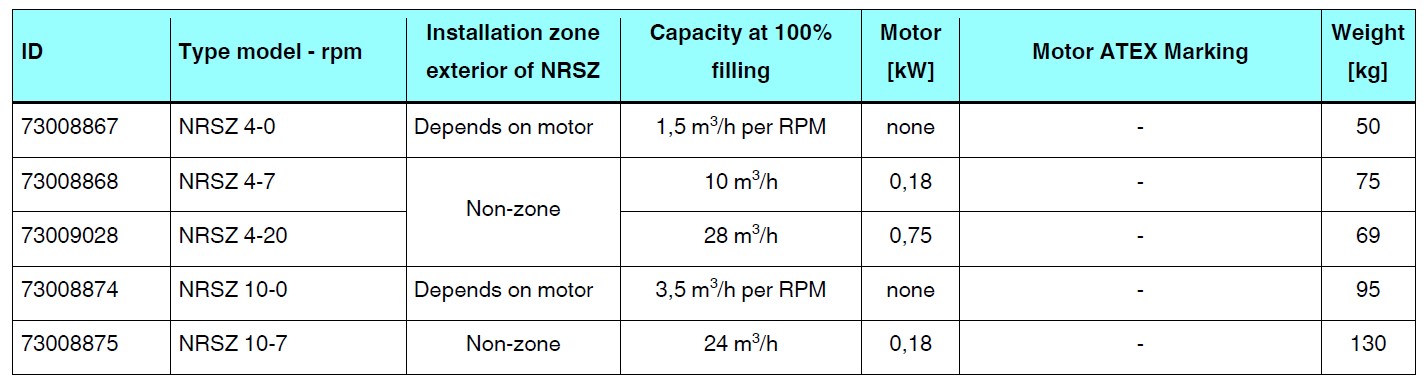

    Rotary Valve NRSZ4-0, rubber, excl. gear motor, Ex D St2 new Certificate valid from 01.07.2014

    ArtNo: 73005385

    功率 (kW)
    none
    重量(公斤)
    50
    Rotary Valve NRSZ4-0, Polyurethane, Ex D St2, excl. gear motor

    ArtNo: 73000051

    功率 (kW)
    none
    Rotary Valve NRSZ4-7, rubber, Ex D St2, II 1/- D c 80°C new Certificate valid from 01.07.2014

    ArtNo: 73005386

    功率 (kW)
    0,18
    重量(公斤)
    75
    Rotary Valve NRSZ4-7, Polyurethane, Ex D St2, II 1/- D c 80°C

    ArtNo: 73000054

    功率 (kW)
    0,18
    Rotary Valve NRSZ4-32, rubber, Ex D St2, II 1/- D c 80°C new Certificate valid from 01.07.2014

    ArtNo: 73004929

    功率 (kW)
    0,75
    重量(公斤)
    69
    Rotary Valve NRSZ4-32, Polyurethane, Ex D St2, II 1/- D c 80°C

    ArtNo: 73000057

    功率 (kW)
    0,75
    Rotary Valve NRSZ10-0, rubber, excl. gear motor Ex D St2 new Certificate valid from 01.07.2014

    ArtNo: 73005394

    功率 (kW)
    none
    Rotary Valve NRSZ10-7, rubber, Ex D St2, II 1/- D c 80°C new Certificate valid from 01.07.2014

    ArtNo: 73005395

    功率 (kW)
    0,18
    重量(公斤)
    130

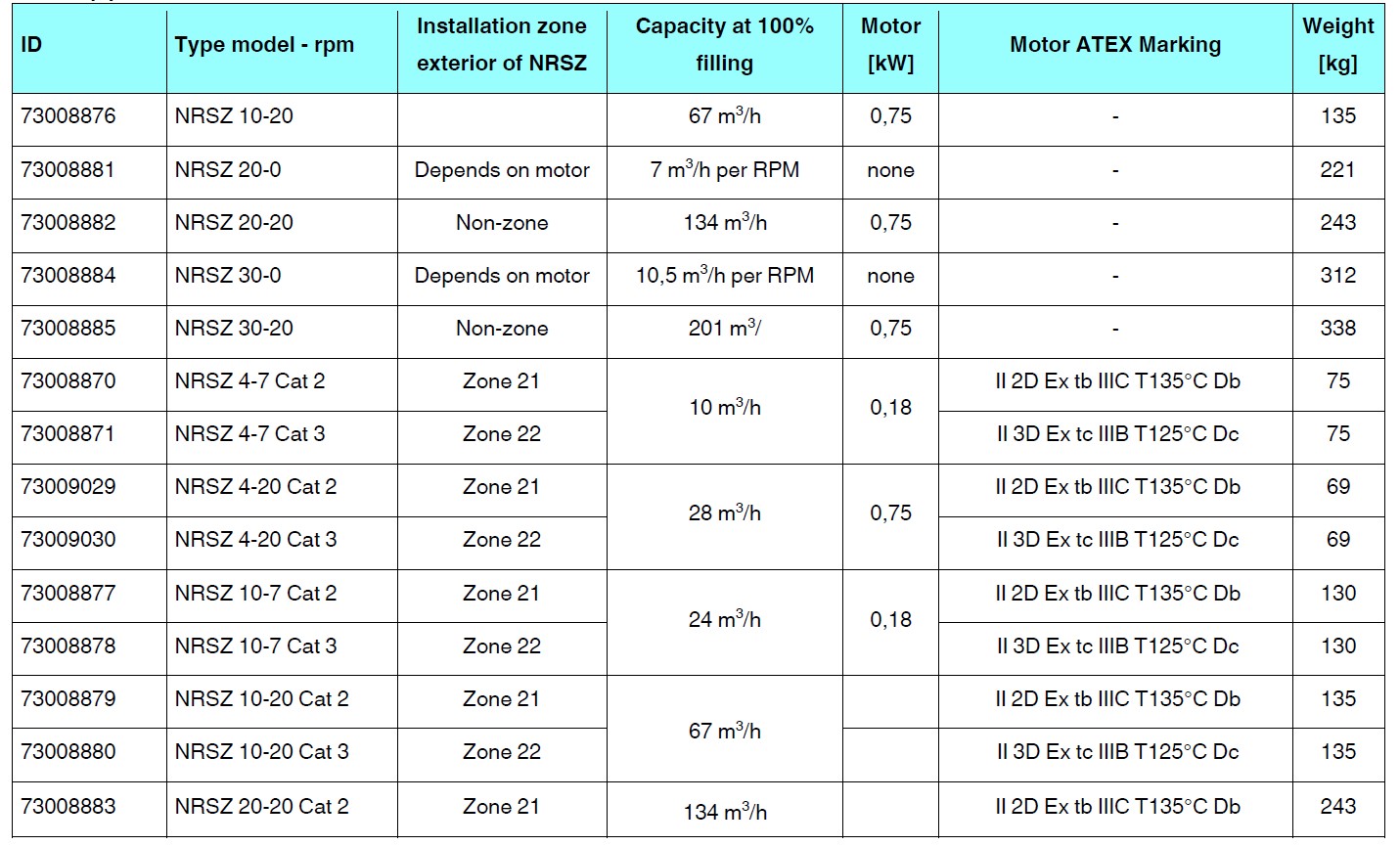

    Rotary Valve NRSZ10-20, rubber, Ex D St2, II 1/- D c 80°C new Certificate valid from 01.07.2014

    ArtNo: 73004930

    功率 (kW)
    0,75
    重量(公斤)
    135
    Rotary Valve NRSZ20-0, rubber, excl. gear motor Ex D St2 new Certificate valid from 01.07.2014

    ArtNo: 73005408

    功率 (kW)
    none
    Rotary Valve NRSZ20-20, rubber, Ex D St2, II 1/- D c 80°C new Certificate valid from 01.07.2014

    ArtNo: 73004931

    功率 (kW)
    0,75
    重量(公斤)
    243
    Rotary Valve NRSZ30-0, rubber, excl. gear motor Ex D St2 new Certificate valid from 01.07.2014

    ArtNo: 73000555

    功率 (kW)
    none
    Rotary Valve NRSZ30-20, rubber, Ex D St2, II 1/- D c 80°C new Certificate valid from 01.07.2014

    ArtNo: 73004932

    功率 (kW)
    0,75
    重量(公斤)
    338
    Rotary Valve NRSZ10-Q-20, rubber, Excl. Gearmotor Ex D St1 new Certificate valid from 01.07.2014

    ArtNo: 7993455

    功率 (kW)
    none
    Rotary valve NRSZ10-Q-20, Rubber, Ex D St1, II 1/- D c 80°C new Certificate valid from 01.07.2014

    ArtNo: 73005405

    功率 (kW)
    1,1
    Rotary Valve NRSZ4-7, rubber, Ex D St2, II 1/3 D c 80°C new Certificate valid from 01.07.2014

    ArtNo: 73005391

    功率 (kW)
    0,18
    Rotary Valve NRSZ4-7, Polyurethane, Ex D St2, II 1/3 D c 80°C

    ArtNo: 73000056

    功率 (kW)
    0,18
    Rotary Valve NRSZ4-32, rubber, Ex D St2, II 1/2 D c 80°C new Certificate valid from 01.07.2014

    ArtNo: 73006346

    功率 (kW)
    0,75
    Rotary Valve NRSZ4-32, rubber, Ex D St2, II 1/3 D c 80°C new Certificate valid from 01.07.2014

    ArtNo: 73003000

    功率 (kW)
    0,75
    Rotary Valve NRSZ4-32, Polyurethane, Ex D St2, II 1/3 D c 80°C

    ArtNo: 73000059

    功率 (kW)
    0,75
    Rotary Valve NRSZ10-7, rubber, Ex D St2, II 1/3 D c 80°C new Certificate valid from 01.07.2014

    ArtNo: 73005401

    功率 (kW)
    0,75
    Rotary valve NRSZ10-20, rubber, Ex D St2, II 1/2 D c 80°C new Certificate valid from 01.07.2014

    ArtNo: 73005400

    功率 (kW)
    0,75
    Rotary Valve NRSZ10-20, rubber, Ex D St2, II 1/3 D c 80°C new Certificate valid from 01.07.2014

    ArtNo: 73005402

    功率 (kW)
    0,75
    Rotary Valve NRSZ10-Q-20, rubber, Ex D St1, II 1/3 D c 80°C new Certificate valid from 01.07.2014

    ArtNo: 73005407

    功率 (kW)
    1,1
