| Customer Name: | Engtex AB |
| Country: | Sweden |
| Product: | Two units Nederman FibreDrain OSF 6x3000 |
| Key Benefits: | Clean air inside the workshop and clean exhausted air from the building |
| Future proof solution with respect to exhausted emissions | |
| Long filter life |
Engtex is a world leading manufacturer of warp knitted technical textiles such as personal protective equipment, for example chainsaw protective garments and trousers. Engtex also produces reinforcement fabrics with plastic coated materials such as synthetic roofing membrane, flexible doors, ventilation ducts, storage halls and tents.
Engtex AB built a new factory and decided to install efficient oil mist filters to clean the exhaust air from the stentermachines. The plasticizer in the textiles are leaving the machines as an organic oil vapor and other air pollution at high concentrations, causing exceptional heat loss and demanding filtration needs.
Nederman presented the FibreDrain concept to Engtex and visited a similar installation/application. In order to recommend the most efficient filter combination, a test with a trial unit was performed. Two oil smoke filter systems, Nederman FibreDrain OSF 6x3000, were installed, including fans in sound boxes and control equipment.

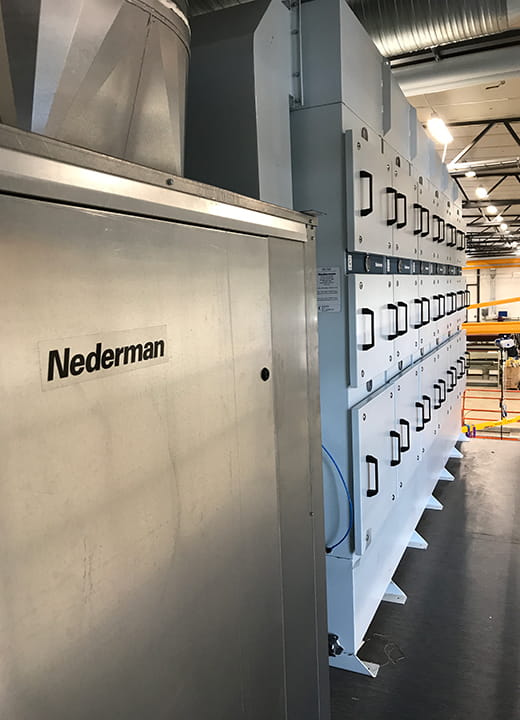

Nederman FibreDrain OSF installation

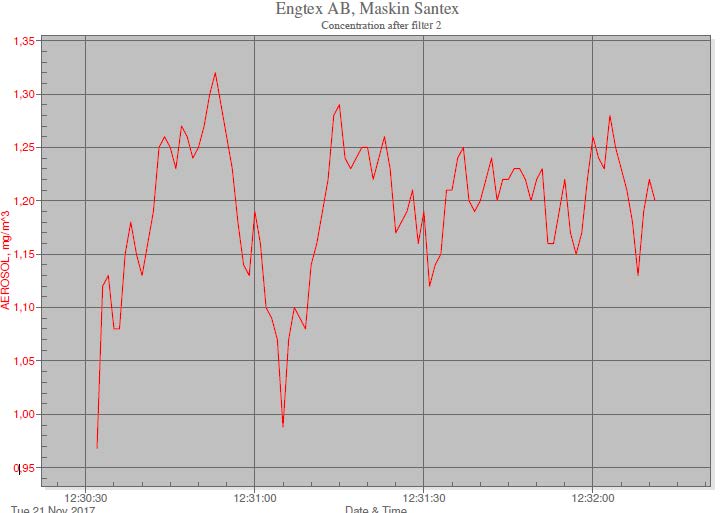

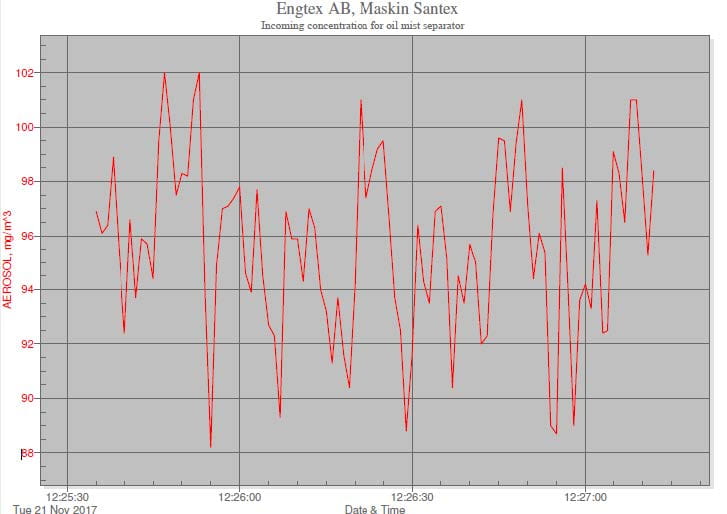

Efficiency of the two main filters is described in the graphs below.
You can download the Engtex Case Study on oil mist filtration here.
