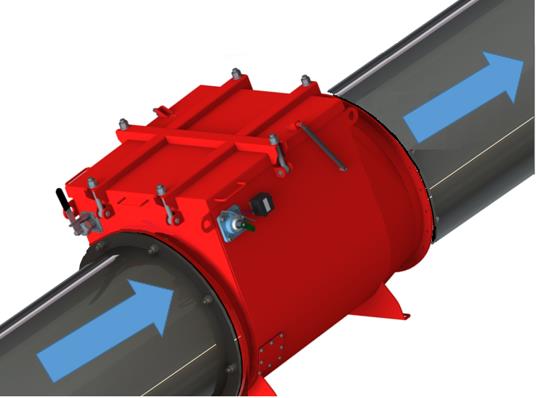

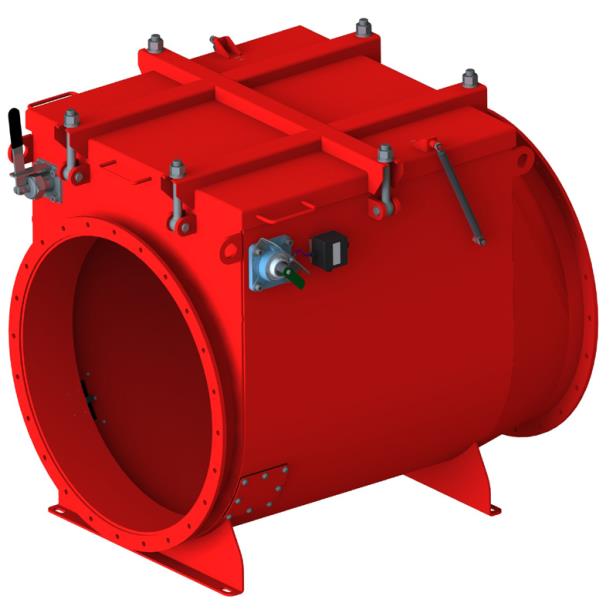

B-Flap I-Explosion Isolation Flap Valve

隔爆翻板阀 B-Flap I - 保护系统

隔爆翻板阀B-Flap I可减少爆炸压力,防止爆炸产生的压力波和火焰蔓延到其他区域。产品符合European Directive
2014/34/EU,并获得EN 16447:2014认证。

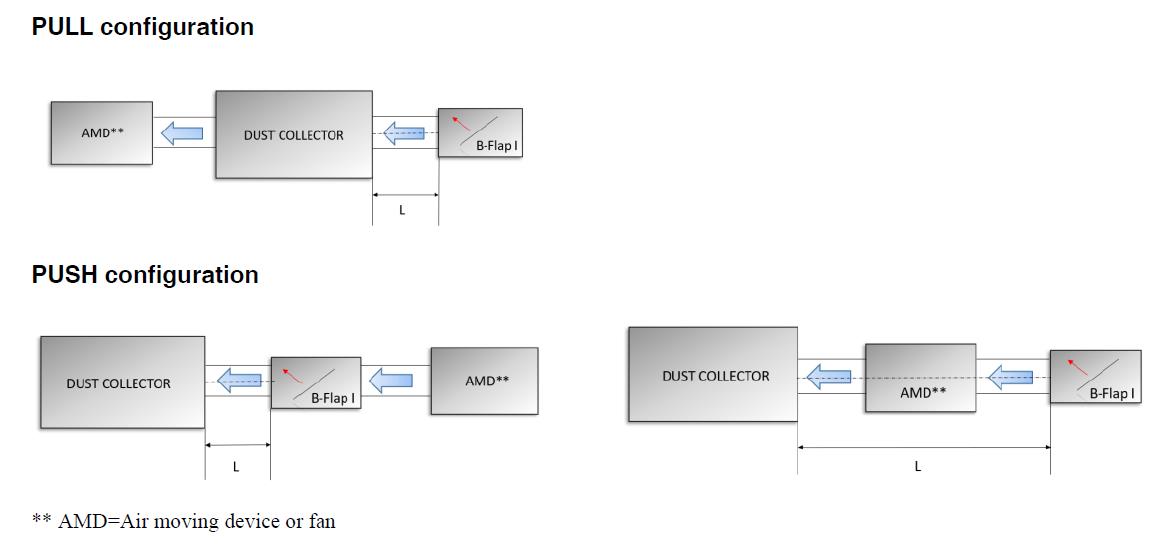

B-Flap I 必须且只能用于拉式结构。

描述:
焊接结构,碳钢,喷漆颜色RAL 3000
不锈钢,如无特殊需求不含表面抛光

功能:

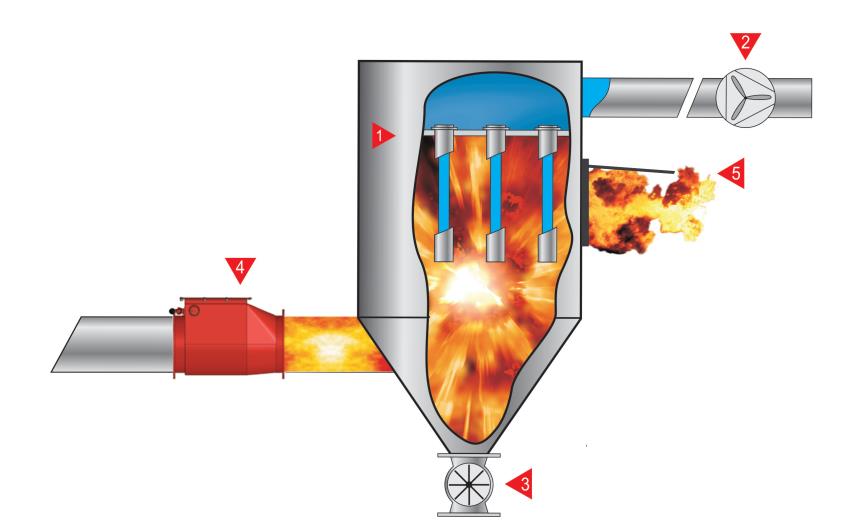

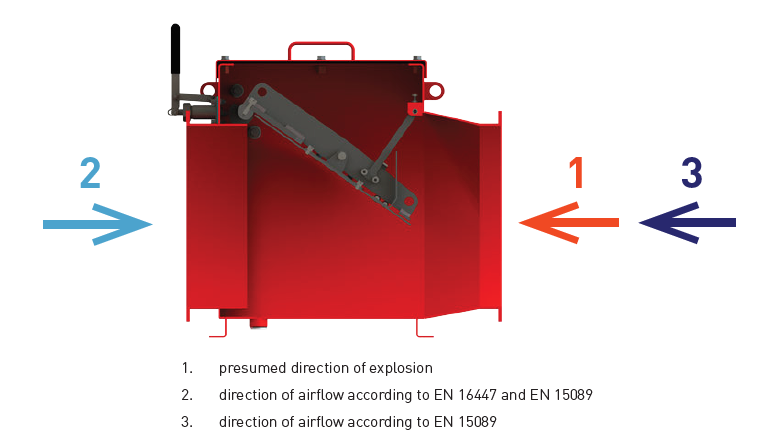

除尘器等下游设备发生爆炸时,产生的压力波将阀板关闭并锁住,从而阻挡火焰蔓延到上游设备及其他生产区域。

  • 室内阀,区域20
  • 室外阀,区域21,22,无区域

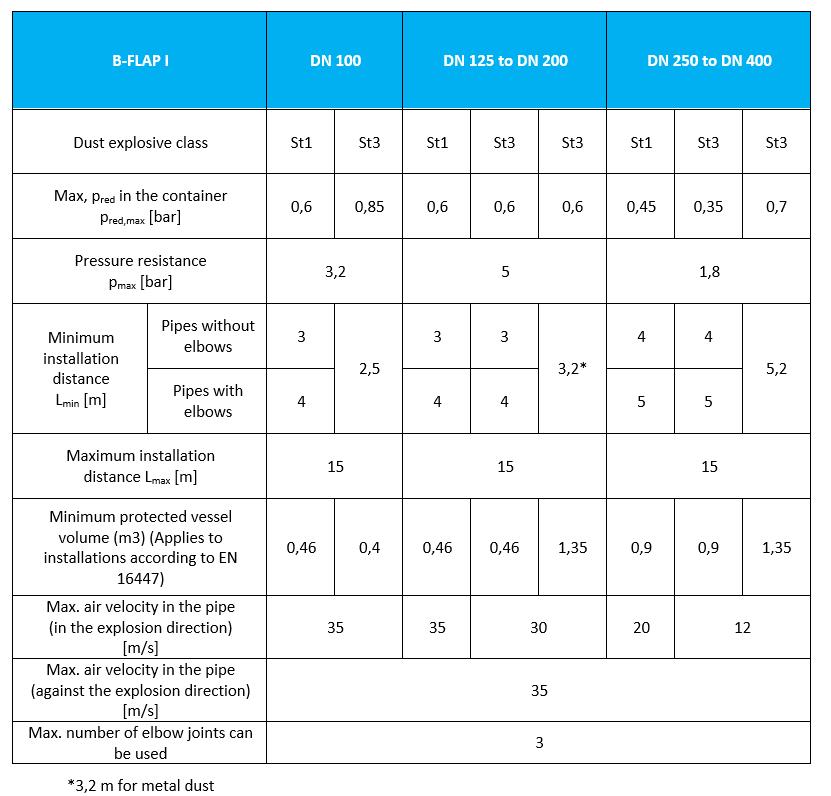

技术参数
证书 CE, EX
材料 Painted carbon steel
Dust Concentration in duct 500 g/m3
Max velocity in duct (m/s) 35
Minimum velocity in duct 0
Install type Pull
    B-Flap I K-ZKL-100-ST1 隔爆阀

    ArtNo: 73007996

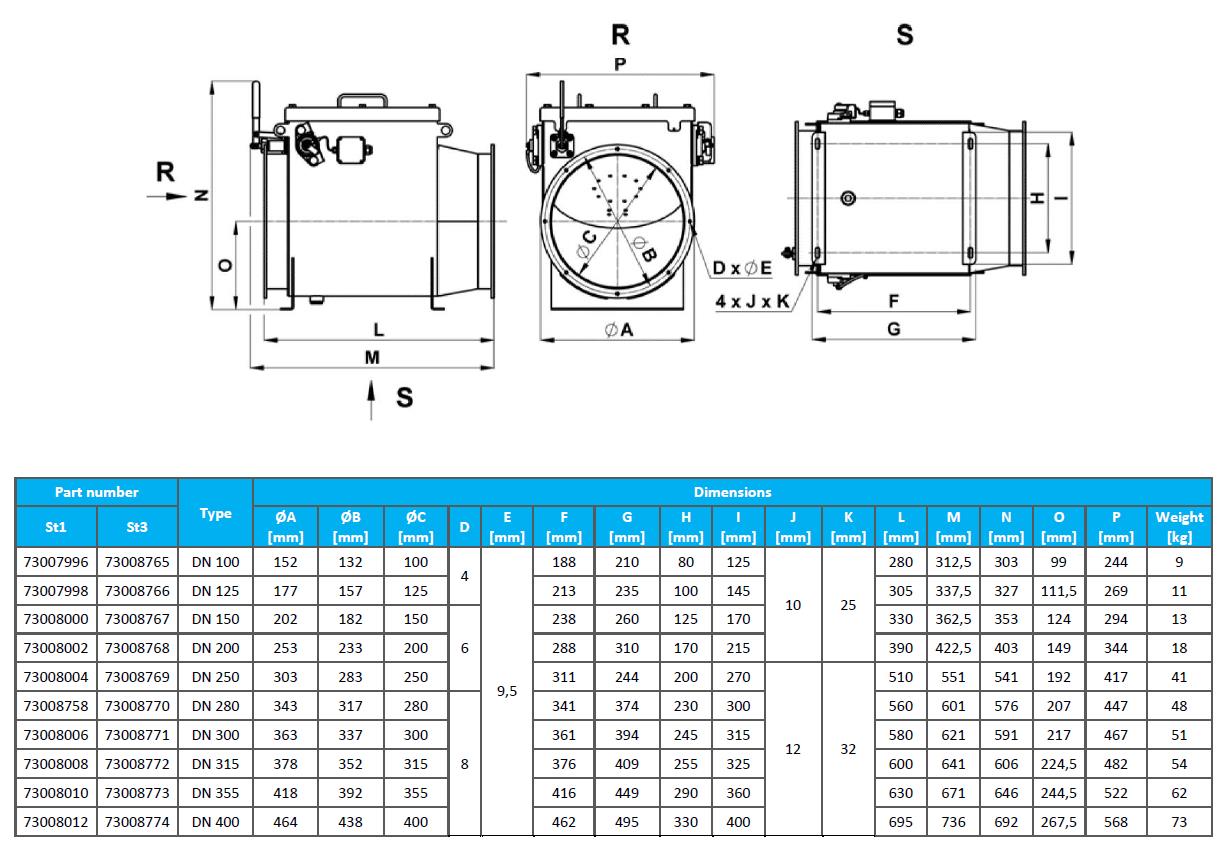

    直径 (mm)
    100
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Min vessel size (m3)
    0,46
    Minimum vessel size, pull (m3)
    0,46
    Maximum reduced pressurem, Pred (bar)
    0,6
    技术数据声明

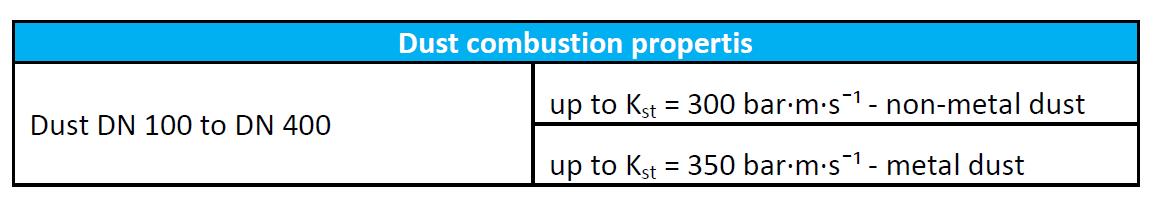

    B-FLAP I, sizes 100-400, St1 marked, may be used on light metal dust (aluminum, etc..)
    重量(公斤)
    9
    B-Flap I K-ZKL-125-ST1 隔爆阀

    ArtNo: 73007998

    直径 (mm)
    125
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Min vessel size (m3)
    0,46
    Minimum vessel size, pull (m3)
    0,46
    Maximum reduced pressurem, Pred (bar)
    0,6
    技术数据声明
    B-FLAP I, sizes 100-400, St1 marked, may be used on light metal dust (aluminum, etc..)
    重量(公斤)
    11
    B-Flap I K-ZKL-150-ST1 隔爆阀

    ArtNo: 73008000

    直径 (mm)
    150
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Min vessel size (m3)
    0,46
    Minimum vessel size, pull (m3)
    0,46
    Maximum reduced pressurem, Pred (bar)
    0,6
    技术数据声明
    B-FLAP I, sizes 100-400, St1 marked, may be used on light metal dust (aluminum, etc..)
    重量(公斤)
    13
    B-Flap I K-ZKL-200-ST1 隔爆阀

    ArtNo: 73008002

    直径 (mm)
    200
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Min vessel size (m3)
    0,46
    Minimum vessel size, pull (m3)
    0,46
    Maximum reduced pressurem, Pred (bar)
    0,6
    技术数据声明
    B-FLAP I, sizes 100-400, St1 marked, may be used on light metal dust (aluminum, etc..)
    重量(公斤)
    18
    B-Flap I K-ZKL-250-ST1 隔爆阀

    ArtNo: 73008004

    直径 (mm)
    250
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Min vessel size (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    技术数据声明
    B-FLAP I, sizes 100-400, St1 marked, may be used on light metal dust (aluminum, etc..)
    重量(公斤)
    40
    B-Flap I K-ZKL-300-ST1 隔爆阀

    ArtNo: 73008006

    直径 (mm)
    300
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Min vessel size (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    技术数据声明
    B-FLAP I, sizes 100-400, St1 marked, may be used on light metal dust (aluminum, etc..)
    重量(公斤)
    50
    B-Flap I K-ZKL-315-ST1 隔爆阀

    ArtNo: 73008008

    直径 (mm)
    315
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Min vessel size (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    技术数据声明
    B-FLAP I, sizes 100-400, St1 marked, may be used on light metal dust (aluminum, etc..)
    重量(公斤)
    53
    B-Flap I K-ZKL-355-ST1 隔爆阀

    ArtNo: 73008010

    直径 (mm)
    355
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Min vessel size (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    技术数据声明
    B-FLAP I, sizes 100-400, St1 marked, may be used on light metal dust (aluminum, etc..)
    重量(公斤)
    61
    B-Flap I K-ZKL-400-ST1 隔爆阀

    ArtNo: 73008012

    直径 (mm)
    400
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Min vessel size (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    技术数据声明
    B-FLAP I, sizes 100-400, St1 marked, may be used on light metal dust (aluminum, etc..)
    重量(公斤)
    77
    B-Flap I K-ZKL-100-N-ST1 隔爆阀 AISI 304

    ArtNo: 73008021

    直径 (mm)
    100
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Min vessel size (m3)
    0,46
    Minimum vessel size, pull (m3)
    0,46
    Maximum reduced pressurem, Pred (bar)
    0,6
    技术数据声明
    不锈钢
    重量(公斤)
    9
    B-Flap I K-ZKL-100-N-ST2 隔爆阀 AISI 304

    ArtNo: 73008022

    直径 (mm)
    100
    Explosion Class ATEX
    St2
    Kst (bar m/s)
    300
    Min vessel size (m3)
    0,46
    Minimum vessel size, pull (m3)
    0,46
    Maximum reduced pressurem, Pred (bar)
    0,6
    技术数据声明
    不锈钢
    重量(公斤)
    9
    B-Flap I K-ZKL-125-N-ST1 隔爆阀 AISI 304

    ArtNo: 73008023

    直径 (mm)
    125
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Min vessel size (m3)
    0,46
    Minimum vessel size, pull (m3)
    0,46
    Maximum reduced pressurem, Pred (bar)
    0,6
    技术数据声明
    不锈钢
    重量(公斤)
    11
    B-Flap I K-ZKL-125-N-ST2 隔爆阀 AISI 304

    ArtNo: 73008024

    直径 (mm)
    125
    Explosion Class ATEX
    St2
    Kst (bar m/s)
    300
    Min vessel size (m3)
    0,46
    Minimum vessel size, pull (m3)
    0,46
    Maximum reduced pressurem, Pred (bar)
    0,6
    技术数据声明
    不锈钢
    重量(公斤)
    11
    B-Flap I K-ZKL-150-N-ST1 隔爆阀 AISI 304

    ArtNo: 73008025

    直径 (mm)
    150
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Min vessel size (m3)
    0,46
    Minimum vessel size, pull (m3)
    0,46
    Maximum reduced pressurem, Pred (bar)
    0,6
    技术数据声明
    不锈钢
    重量(公斤)
    13
    B-Flap I K-ZKL-150-N-ST2 隔爆阀 AISI 304

    ArtNo: 73008026

    直径 (mm)
    150
    Explosion Class ATEX
    St2
    Kst (bar m/s)
    300
    Min vessel size (m3)
    0,46
    Minimum vessel size, pull (m3)
    0,46
    Maximum reduced pressurem, Pred (bar)
    0,6
    技术数据声明
    不锈钢
    重量(公斤)
    13
    B-Flap I K-ZKL-200-N-ST1 隔爆阀 AISI 304

    ArtNo: 73008027

    直径 (mm)
    200
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Min vessel size (m3)
    0,46
    Minimum vessel size, pull (m3)
    0,46
    Maximum reduced pressurem, Pred (bar)
    0,6
    技术数据声明
    不锈钢
    重量(公斤)
    18
    B-Flap I K-ZKL-200-N-ST2 隔爆阀 AISI 304

    ArtNo: 73008028

    直径 (mm)
    200
    Explosion Class ATEX
    St2
    Kst (bar m/s)
    300
    Min vessel size (m3)
    0,46
    Minimum vessel size, pull (m3)
    0,46
    Maximum reduced pressurem, Pred (bar)
    0,6
    技术数据声明
    不锈钢
    重量(公斤)
    18
    B-Flap I K-ZKL-250-N-ST1 隔爆阀 AISI 304

    ArtNo: 73008029

    直径 (mm)
    250
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Min vessel size (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    技术数据声明
    不锈钢
    重量(公斤)
    40
    B-Flap I K-ZKL-250-N-ST2 隔爆阀 AISI 304

    ArtNo: 73008030

    直径 (mm)
    250
    Explosion Class ATEX
    St2
    Kst (bar m/s)
    300
    Min vessel size (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,35
    技术数据声明
    不锈钢
    重量(公斤)
    40
    B-Flap I K-ZKL-300-N-ST1 隔爆阀 AISI 304

    ArtNo: 73008031

    直径 (mm)
    300
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Min vessel size (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    技术数据声明
    不锈钢
    重量(公斤)
    50
    B-Flap I K-ZKL-300-N-ST2 隔爆阀 AISI 304

    ArtNo: 73008032

    直径 (mm)
    300
    Explosion Class ATEX
    St2
    Kst (bar m/s)
    300
    Min vessel size (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,35
    技术数据声明
    不锈钢
    重量(公斤)
    50
    B-Flap I K-ZKL-315-N-ST1 隔爆阀 AISI 304

    ArtNo: 73008033

    直径 (mm)
    315
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Min vessel size (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    技术数据声明
    不锈钢
    重量(公斤)
    53
    B-Flap I K-ZKL-315-N-ST2 隔爆阀 AISI 304

    ArtNo: 73008034

    直径 (mm)
    315
    Explosion Class ATEX
    St2
    Kst (bar m/s)
    300
    Min vessel size (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,35
    技术数据声明
    不锈钢
    重量(公斤)
    53
    B-Flap I K-ZKL-355-N-ST1 隔爆阀 AISI 304

    ArtNo: 73008035

    直径 (mm)
    355
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Min vessel size (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    技术数据声明
    不锈钢
    重量(公斤)
    61
    B-Flap I K-ZKL-355-N-ST2 隔爆阀 AISI 304

    ArtNo: 73008036

    直径 (mm)
    355
    Explosion Class ATEX
    St2
    Kst (bar m/s)
    300
    Min vessel size (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,35
    技术数据声明
    不锈钢
    重量(公斤)
    61
    B-Flap I K-ZKL-400-N-ST1 隔爆阀 AISI 304

    ArtNo: 73008037

    直径 (mm)
    400
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Min vessel size (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,45
    技术数据声明
    不锈钢
    重量(公斤)
    77
    B-Flap I K-ZKL-400-N-ST2 隔爆阀 AISI 304

    ArtNo: 73008038

    直径 (mm)
    400
    Explosion Class ATEX
    St2
    Kst (bar m/s)
    300
    Min vessel size (m3)
    0,9
    Minimum vessel size, pull (m3)
    0,9
    Maximum reduced pressurem, Pred (bar)
    0,35
    技术数据声明
    不锈钢
    重量(公斤)
    77
    B-Flap I K-ZKL-450-N-ST1 隔爆阀 AISI 304

    ArtNo: 73008039

    直径 (mm)
    450
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Min vessel size (m3)
    1,6
    Minimum vessel size, pull (m3)
    1,6
    Maximum reduced pressurem, Pred (bar)
    0,35
    技术数据声明
    不锈钢
    重量(公斤)
    88
    B-Flap I K-ZKL-500-N-ST1 隔爆阀 AISI 304

    ArtNo: 73008040

    直径 (mm)
    500
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Min vessel size (m3)
    1,6
    Minimum vessel size, pull (m3)
    1,6
    Maximum reduced pressurem, Pred (bar)
    0,35
    技术数据声明
    不锈钢
    重量(公斤)
    101
    B-Flap I K-ZKL-560-N-ST1 隔爆阀 AISI 304

    ArtNo: 73008041

    直径 (mm)
    560
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Min vessel size (m3)
    6
    Minimum vessel size, pull (m3)
    6
    Maximum reduced pressurem, Pred (bar)
    0,45
    技术数据声明
    不锈钢
    重量(公斤)
    157
    B-Flap I K-ZKL-630-N-ST1 隔爆阀 AISI 304

    ArtNo: 73008042

    直径 (mm)
    630
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Min vessel size (m3)
    6
    Minimum vessel size, pull (m3)
    6
    Maximum reduced pressurem, Pred (bar)
    0,45
    技术数据声明
    不锈钢
    重量(公斤)
    180

适用于本产品的配件 3

Position sensor ATEX version (zone 21, 22, no zone)
ArtNo: 73002043

B-Flap locking sensor kit (sensor NE5 + relay Type 917 + J box)

Position sensor standard version (no zone)
ArtNo: 73002168

B-Flap locking sensor kit (sensor 24VDC + cable 20m)

Dirt sensor
ArtNo: 73008048

B-Flap dirt sensor kit (sensor CCB10 + relay Type 917 + J box)
