Explosion Isolation Flap Valve CARZ

爆炸隔离阀CARZ——用于可燃粉尘应用的保护系统。

CARZ爆炸隔离阀能够防止除尘器内的爆炸压力波和火焰通过管道传播到其他工艺单元。使用我们的CARZ隔爆阀可以减少粉尘爆炸对工作人员和设备产生的危害。

工作原理

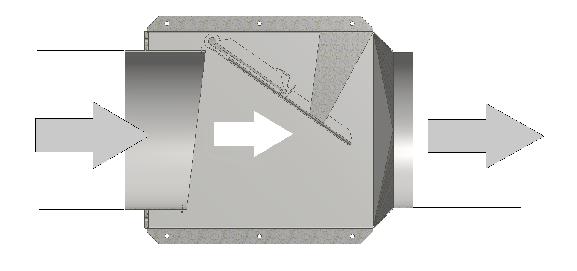

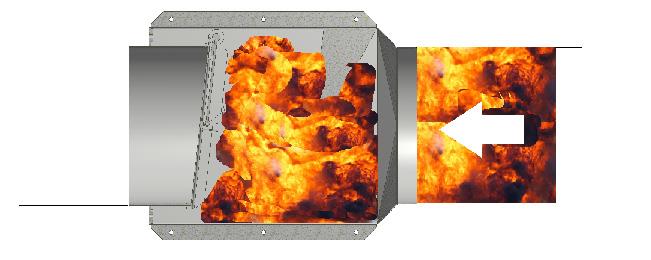

在系统正常操作的条件下,隔爆阀为打开状态。当除尘器内发生爆炸时,爆炸压力波推动闭合装置紧闭于密闭片上,当关闭时,隔离阀被锁定,并且有效阻止爆炸产生的火焰和压力波从除尘器传播到其他工艺单元。

我们为各个行业提供全面的防爆除尘解决方案和防爆隔离阀产品,可用于处理各类可燃粉尘,满足您的多样化需求。

  • 根据现有的标准法规已经过独立测试
  • 符合大多数国际粉尘防爆标准(ATEX和NFPA68)
  • 市面上最齐全的尺寸选择和除尘器配置,以及最广的应用范围(获得包括正负压系统方面的许可)
  • 由尼的曼在认证质量保证体系下制造,保证了最高水平的质量和可靠性。

技术参数
环境温度范围 -20°C - +60°C (Min 0 F Max 140 F)
证书 CE, EX
材料 Welded carbon steel, painted RAL5009
作业温度 -20°C - +70°C (Min 0 F Max 160 F)
Explosion Class ATEX St1
Kst (bar m/s) 200

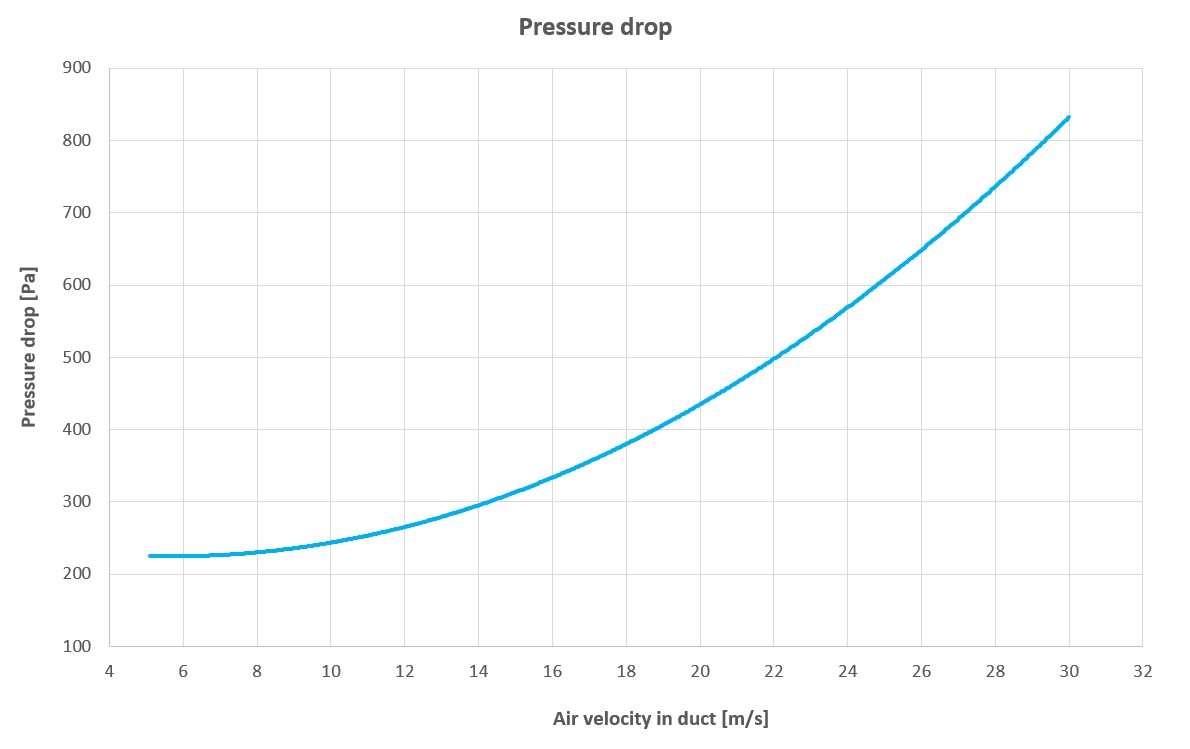

Max velocity in duct (m/s) 30
Minimum velocity in duct 0
Maximum reduced pressurem, Pred (bar) 0,45

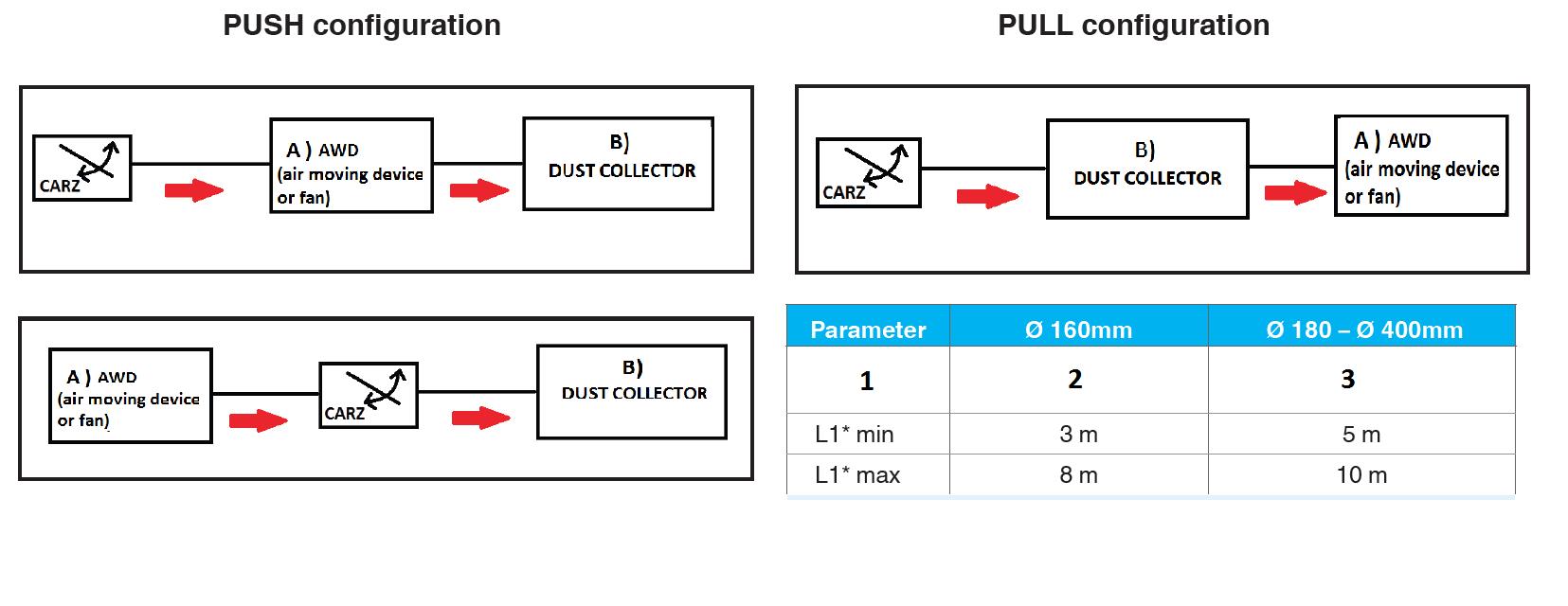

Install type Push and Pull

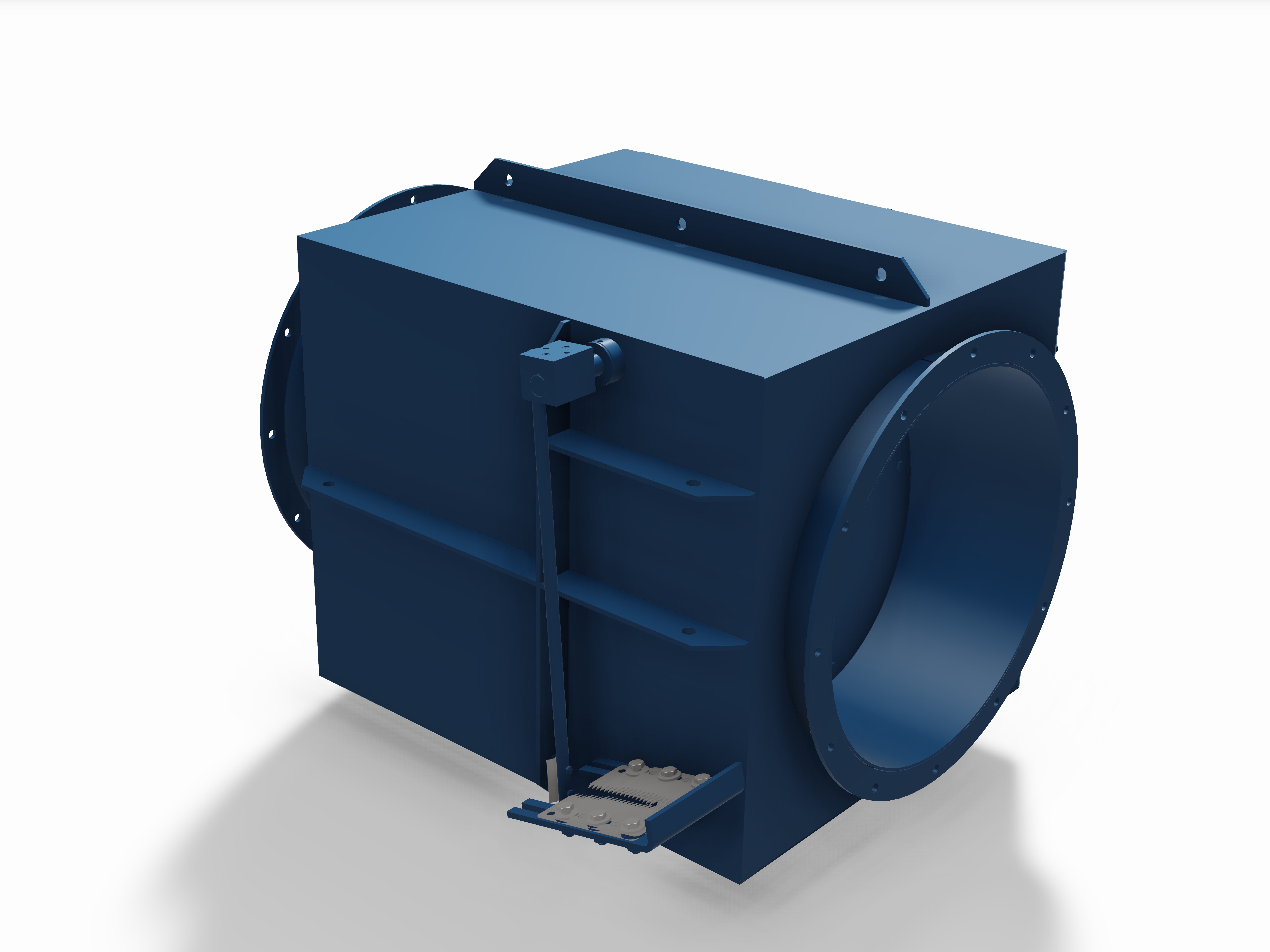

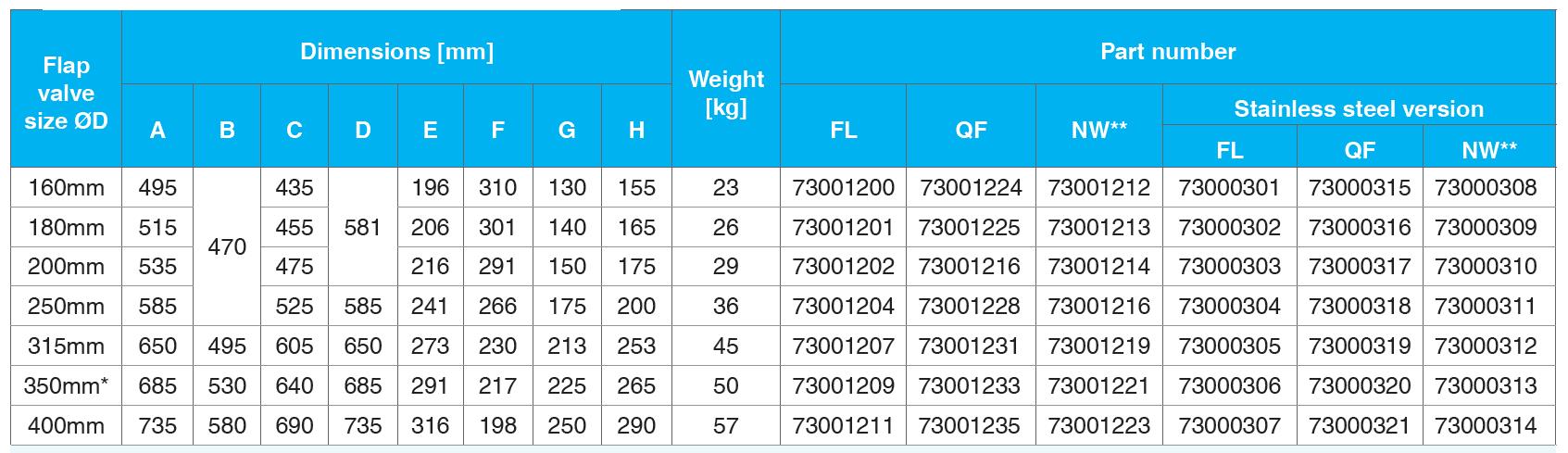

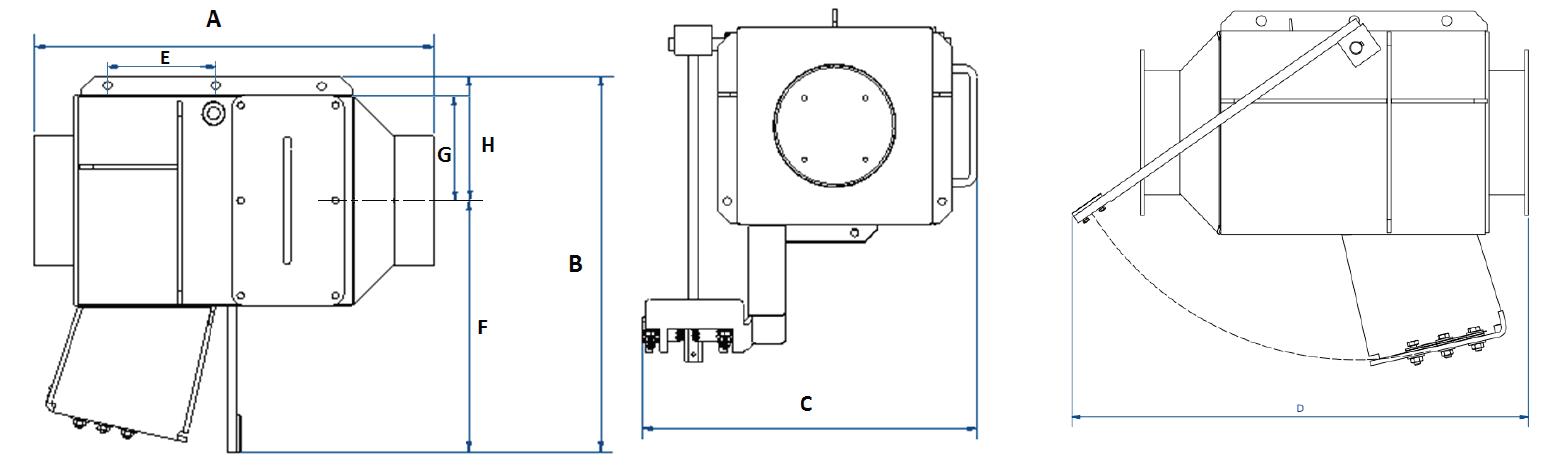

    CARZ 160 Explosion Isolation Flap Valve FL, Ex D St1

    ArtNo: 73001200

    直径 (mm)
    160
    Connection
    FL
    Dust Concentration in duct
    Any
    Minimum vessel size, pull (m3)
    0,4
    Minimum vessel size, push (m3)
    0,4
    重量(公斤)
    23
    CARZ 180 Explosion Isolation Flap Valve FL, Ex D St1

    ArtNo: 73001201

    直径 (mm)
    180
    Connection
    FL
    Dust Concentration in duct
    < LEL
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    技术数据声明
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    重量(公斤)
    26
    CARZ 200 Explosion Isolation Flap Valve FL, Ex D St1

    ArtNo: 73001202

    直径 (mm)
    200
    Connection
    FL
    Dust Concentration in duct
    < LEL
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    技术数据声明
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    重量(公斤)
    29
    CARZ 250 Explosion Isolation Flap Valve FL, Ex D St1

    ArtNo: 73001204

    直径 (mm)
    250
    Connection
    FL
    Dust Concentration in duct
    < LEL
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    技术数据声明
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    重量(公斤)
    36
    CARZ 315 Explosion Isolation Flap Valve FL, Ex D St1

    ArtNo: 73001207

    直径 (mm)
    315
    Connection
    FL
    Dust Concentration in duct
    < LEL
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    技术数据声明
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    重量(公斤)
    45
    CARZ 350 Explosion Isolation Flap Valve FL, Ex D St1

    ArtNo: 73001209

    直径 (mm)
    350
    Connection
    FL
    Dust Concentration in duct
    < LEL
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    技术数据声明
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    重量(公斤)
    50
    CARZ 400 Explosion Isolation Flap Valve FL, Ex D St1

    ArtNo: 73001211

    直径 (mm)
    400
    Connection
    FL
    Dust Concentration in duct
    < LEL
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    技术数据声明
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    重量(公斤)
    57
    CARZ 160 Explosion Isolation Flap Valve NW, Ex D St1

    ArtNo: 73001212

    直径 (mm)
    160
    Connection
    NW
    Dust Concentration in duct
    Any
    Minimum vessel size, pull (m3)
    0,4
    Minimum vessel size, push (m3)
    0,4
    重量(公斤)
    23
    CARZ 180 Explosion Isolation Flap Valve NW, Ex D St1

    ArtNo: 73001213

    直径 (mm)
    180
    Connection
    NW
    Dust Concentration in duct
    < LEL
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    技术数据声明
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    重量(公斤)
    26
    CARZ 200 Explosion Isolation Flap Valve NW, Ex D St1

    ArtNo: 73001214

    直径 (mm)
    200
    Connection
    NW
    Dust Concentration in duct
    < LEL
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    技术数据声明
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    重量(公斤)
    29
    CARZ 250 Explosion Isolation Flap Valve NW, Ex D St1

    ArtNo: 73001216

    直径 (mm)
    250
    Connection
    NW
    Dust Concentration in duct
    < LEL
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    技术数据声明
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    重量(公斤)
    36
    CARZ 315 Explosion Isolation Flap Valve NW, Ex D St1

    ArtNo: 73001219

    直径 (mm)
    315
    Connection
    NW
    Dust Concentration in duct
    < LEL
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    技术数据声明
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    重量(公斤)
    45
    CARZ 355 Explosion Isolation Flap Valve NW, Ex D St1

    ArtNo: 73001221

    直径 (mm)
    355
    Connection
    NW
    Dust Concentration in duct
    < LEL
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    技术数据声明
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    重量(公斤)
    50
    CARZ 400 Explosion Isolation Flap Valve NW, Ex D St1

    ArtNo: 73001223

    直径 (mm)
    400
    Connection
    NW
    Dust Concentration in duct
    < LEL
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    技术数据声明
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    重量(公斤)
    57
    CARZ 160 Explosion Isolation Flap Valve QF, Ex D St1

    ArtNo: 73001224

    直径 (mm)
    160
    Connection
    QF
    Dust Concentration in duct
    Any
    Minimum vessel size, pull (m3)
    0,4
    Minimum vessel size, push (m3)
    0,4
    重量(公斤)
    23
    CARZ 180 Explosion Isolation Flap Valve QF, Ex D St1

    ArtNo: 73001225

    直径 (mm)
    180
    Connection
    QF
    Dust Concentration in duct
    < LEL
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    技术数据声明
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    重量(公斤)
    26
    CARZ 200 Explosion Isolation Flap Valve QF, Ex D St1

    ArtNo: 73001226

    直径 (mm)
    200
    Connection
    QF
    Dust Concentration in duct
    < LEL
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    技术数据声明
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    CARZ 250 Explosion Isolation Flap Valve QF, Ex D St1

    ArtNo: 73001228

    直径 (mm)
    250
    Connection
    QF
    Dust Concentration in duct
    < LEL
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    技术数据声明
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    重量(公斤)
    29
    CARZ 315 Explosion Isolation Flap Valve QF, Ex D St1

    ArtNo: 73001231

    直径 (mm)
    315
    Connection
    QF
    Dust Concentration in duct
    < LEL
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    技术数据声明
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    重量(公斤)
    36
    CARZ 350 Explosion Isolation Flap Valve QF, Ex D St1

    ArtNo: 73001233

    直径 (mm)
    350
    Connection
    QF
    Dust Concentration in duct
    < LEL
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    技术数据声明
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    重量(公斤)
    45
    CARZ 400 Explosion Isolation Flap Valve QF, Ex D St1

    ArtNo: 73001235

    直径 (mm)
    400
    Connection
    QF
    Dust Concentration in duct
    < LEL
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    0,9
    技术数据声明
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    重量(公斤)
    57
