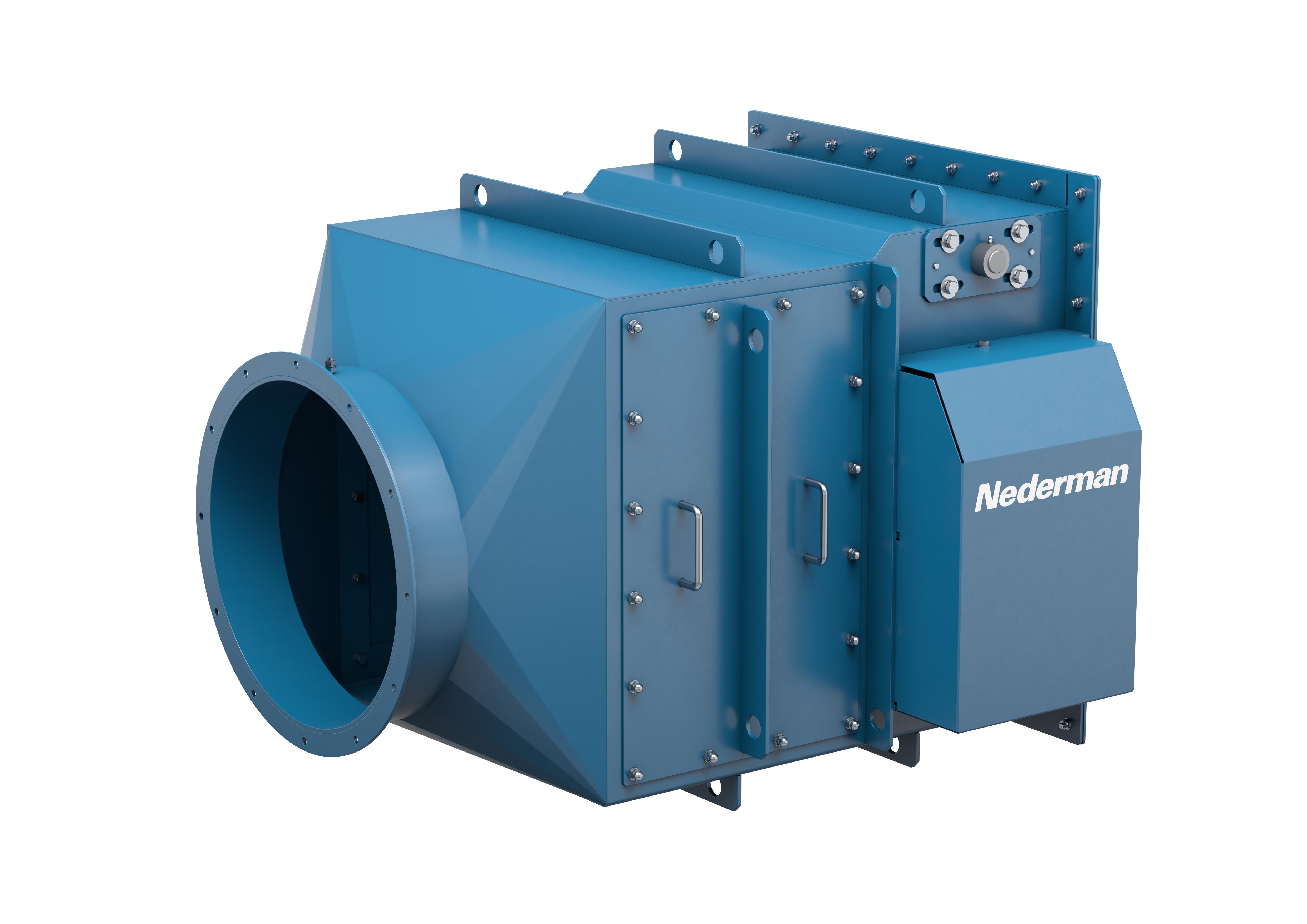

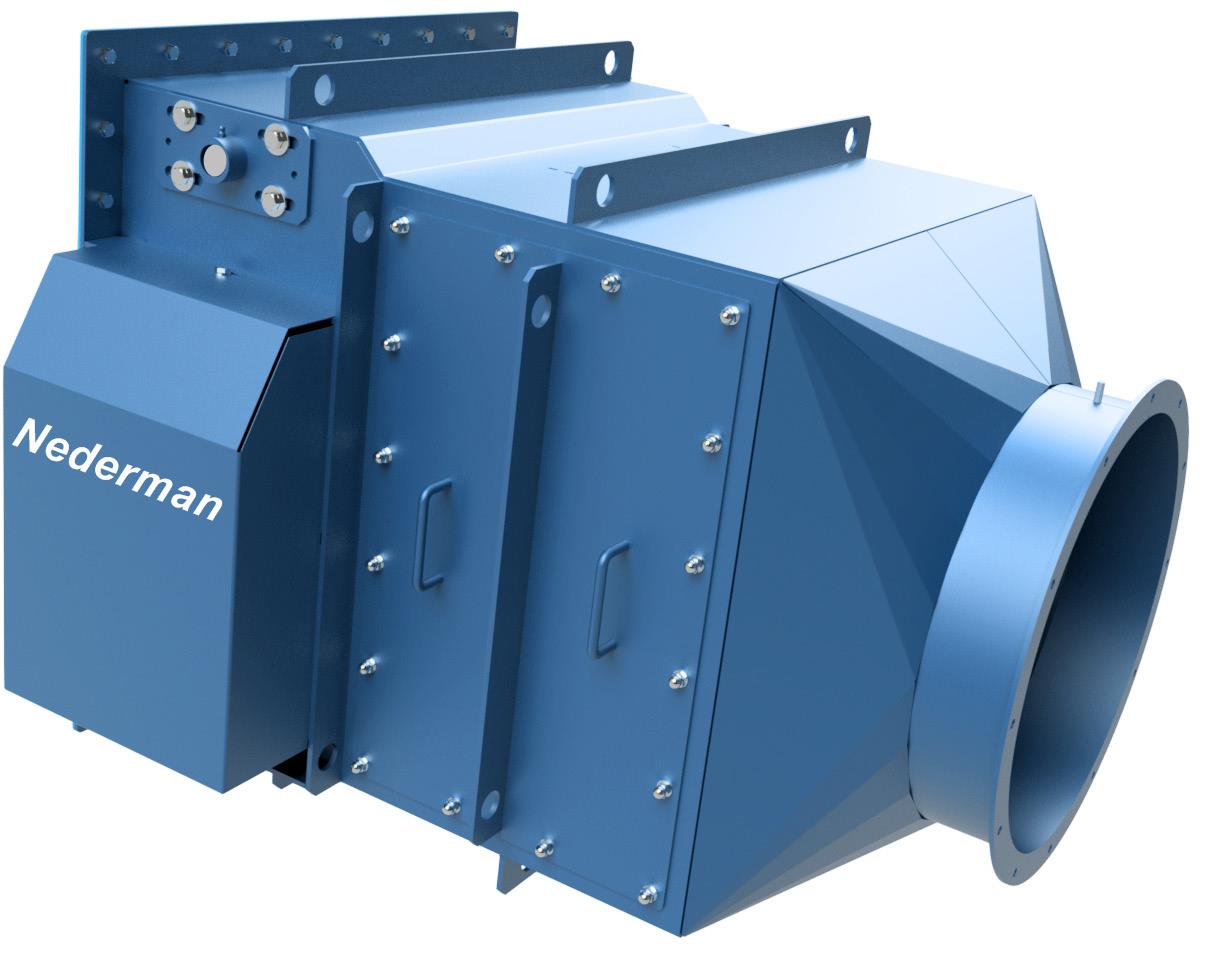

Explosion Isolation Flap Valve CARZ-N Ø315-1000mm

爆炸隔离阀CARZ-N——用于可燃粉尘应用的保护系统。

"CARZ-N爆炸隔离阀能够防止除尘器内的爆炸压力波和火焰通过管道传播到其他工艺单元。使用我们的CARZ-N隔爆阀可以减少粉尘爆炸对工作人员和设备产生的危害。

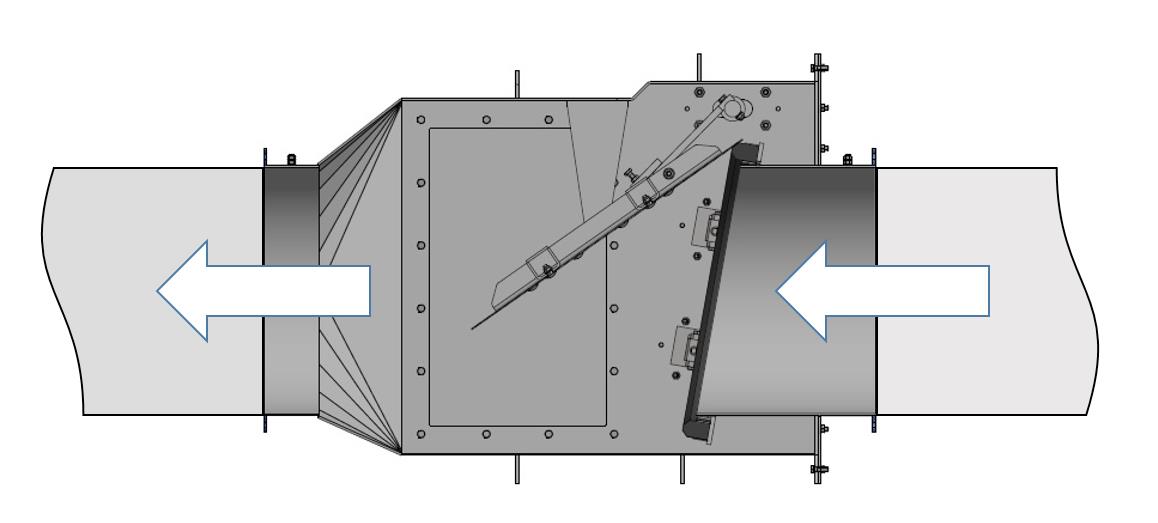

工作原理

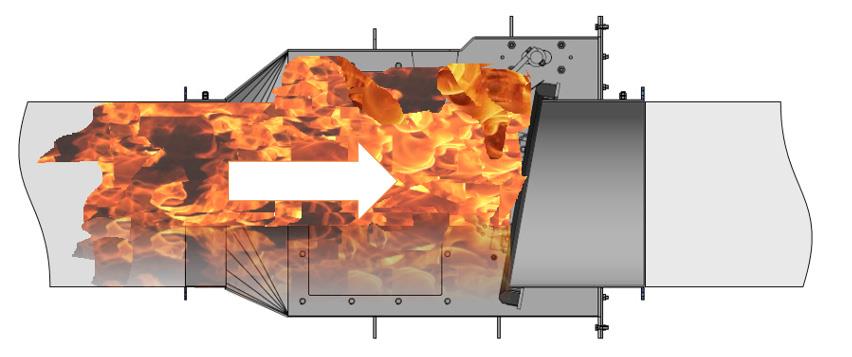

在系统正常操作的条件下,隔爆阀为打开状态。当除尘器内发生爆炸时,爆炸压力波推动闭合装置紧闭于密闭片上,当关闭时,隔离阀被锁定,并且有效阻止爆炸产生的火焰和压力波从除尘器传播到其他工艺单元。

我们为各个行业提供全面的防爆除尘解决方案和防爆隔离阀产品,可用于处理各类可燃粉尘,满足您的多样化需求。"

  • 已经过独立测试,满足最新且最严苛的标准和法规
  • 符合国际粉尘防爆标准(ATEX、NFPA69、IECEx)
  • 市面上最齐全的尺寸选择和除尘器配置,以及最广的应用范围(可用于正负压系统,用于St2级粉尘的隔爆阀最大接口尺寸可达630mm)
  • 由尼的曼在认证质量保证体系下制造,保证了最高水平的质量和可靠性。

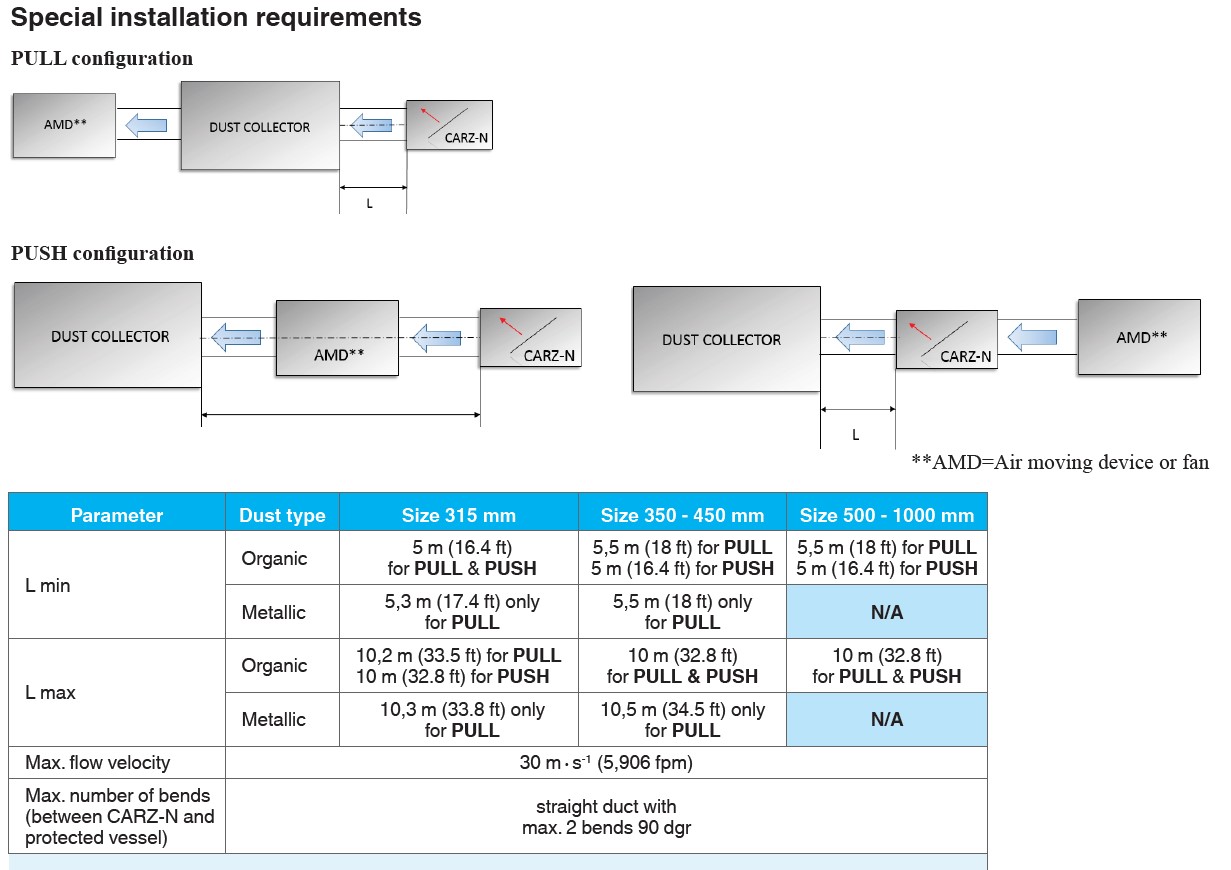

技术参数
环境温度范围 -20 - +60°C (0 - 140F)
证书 CE, EX
材料 Welded carbon steel, painted RAL5009
作业温度 -20 - +70°C (0 - 160F)
Max velocity in duct (m/s) 30
Minimum velocity in duct 0
Install type Push and Pull
    CARZ-N 450 Explosion Isolation Flap Valve FL, Ex D St2

    ArtNo: 73007816

    直径 (mm)
    450
    Connection
    FL
    Explosion Class ATEX
    St2
    Kst (bar m/s)
    300
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    1,6
    技术数据声明
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    重量(公斤)
    175
    CARZ-N 450 Explosion Isolation Flap Valve NW, Ex D St2

    ArtNo: 73007817

    直径 (mm)
    450
    Connection
    NW
    Explosion Class ATEX
    St2
    Kst (bar m/s)
    300
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    1,6
    技术数据声明
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    重量(公斤)
    175
    CARZ-N 500 Explosion Isolation Flap Valve FL, Ex D St2

    ArtNo: 73007839

    直径 (mm)
    500
    Connection
    FL
    Explosion Class ATEX
    St2
    Kst (bar m/s)
    300
    Minimum vessel size, pull (m3)
    1,6
    Minimum vessel size, push (m3)
    1,6
    技术数据声明
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    重量(公斤)
    200
    CARZ-N 500 Explosion Isolation Flap Valve NW, Ex D St2

    ArtNo: 73007840

    直径 (mm)
    500
    Connection
    NW
    Explosion Class ATEX
    St2
    Kst (bar m/s)
    300
    Minimum vessel size, pull (m3)
    1,6
    Minimum vessel size, push (m3)
    1,6
    技术数据声明
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    重量(公斤)
    200
    CARZ-N 560 Explosion Isolation Flap Valve FL, Ex D St2

    ArtNo: 73007845

    直径 (mm)
    560
    Connection
    FL
    Explosion Class ATEX
    St2
    Kst (bar m/s)
    300
    Minimum vessel size, pull (m3)
    1,6
    Minimum vessel size, push (m3)
    1,6
    技术数据声明
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    重量(公斤)
    224
    CARZ-N 560 Explosion Isolation Flap Valve NW, Ex D St2

    ArtNo: 73007846

    直径 (mm)
    560
    Connection
    NW
    Explosion Class ATEX
    St2
    Kst (bar m/s)
    300
    Minimum vessel size, pull (m3)
    1,6
    Minimum vessel size, push (m3)
    1,6
    技术数据声明
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    重量(公斤)
    224
    CARZ-N 630 Explosion Isolation Flap Valve FL, Ex D St2

    ArtNo: 73007851

    直径 (mm)
    630
    Connection
    FL
    Explosion Class ATEX
    St2
    Kst (bar m/s)
    300
    Minimum vessel size, pull (m3)
    1,6
    Minimum vessel size, push (m3)
    1,6
    技术数据声明
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    重量(公斤)
    260
    CARZ-N 630 Explosion Isolation Flap Valve NW, Ex D St2

    ArtNo: 73007852

    直径 (mm)
    630
    Connection
    NW
    Explosion Class ATEX
    St2
    Kst (bar m/s)
    300
    Minimum vessel size, pull (m3)
    1,6
    Minimum vessel size, push (m3)
    1,6
    技术数据声明
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    重量(公斤)
    260
    CARZ-N 710 Explosion Isolation Flap Valve FL, Ex D St1

    ArtNo: 73008055

    直径 (mm)
    710
    Connection
    FL
    Dust Concentration in duct
    Any
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Minimum vessel size, pull (m3)
    3,2
    Minimum vessel size, push (m3)
    3,2
    CARZ-N 710 Explosion Isolation Flap Valve NW, Ex D St1

    ArtNo: 73008056

    直径 (mm)
    710
    Connection
    NW
    Dust Concentration in duct
    Any
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Minimum vessel size, pull (m3)
    3,2
    Minimum vessel size, push (m3)
    3,2
    重量(公斤)
    566
    CARZ-N 800 Explosion Isolation Flap Valve FL, Ex D St1

    ArtNo: 73008058

    直径 (mm)
    800
    Connection
    FL
    Dust Concentration in duct
    Any
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Minimum vessel size, pull (m3)
    3,2
    Minimum vessel size, push (m3)
    3,2
    重量(公斤)
    431
    CARZ-N 800 Explosion Isolation Flap Valve NW, Ex D St1

    ArtNo: 73008059

    直径 (mm)
    800
    Connection
    NW
    Dust Concentration in duct
    Any
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Minimum vessel size, pull (m3)
    3,2
    Minimum vessel size, push (m3)
    3,2
    重量(公斤)
    431
    CARZ-N 900 Explosion Isolation Flap Valve FL, Ex D St1

    ArtNo: 73008060

    直径 (mm)
    900
    Connection
    FL
    Dust Concentration in duct
    Any
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Minimum vessel size, pull (m3)
    3,2
    Minimum vessel size, push (m3)
    3,2
    重量(公斤)
    490
    CARZ-N 900 Explosion Isolation Flap Valve NW, Ex D St1

    ArtNo: 73008061

    直径 (mm)
    900
    Connection
    NW
    Dust Concentration in duct
    Any
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Minimum vessel size, pull (m3)
    3,2
    Minimum vessel size, push (m3)
    3,2
    重量(公斤)
    490
    CARZ-N 1000 Explosion Isolation Flap Valve FL, Ex D St1

    ArtNo: 73008062

    直径 (mm)
    1000
    Connection
    FL
    Dust Concentration in duct
    Any
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Minimum vessel size, pull (m3)
    3,2
    Minimum vessel size, push (m3)
    3,2
    重量(公斤)
    566
    CARZ-N 1000 Explosion Isolation Flap Valve NW, Ex D St1

    ArtNo: 73008063

    直径 (mm)
    1000
    Connection
    NW
    Dust Concentration in duct
    Any
    Explosion Class ATEX
    St1
    Kst (bar m/s)
    200
    Minimum vessel size, pull (m3)
    3,2
    Minimum vessel size, push (m3)
    3,2
    重量(公斤)
    566
    CARZ-N 315 Explosion Isolation Flap Valve FL, Ex D St2

    ArtNo: 73008407

    直径 (mm)
    315
    Connection
    FL
    Dust Concentration in duct
    Any
    Explosion Class ATEX
    St2
    Kst (bar m/s)
    300
    Minimum vessel size, pull (m3)
    0,46
    Minimum vessel size, push (m3)
    0,46
    Maximum reduced pressurem, Pred (bar)
    0,5
    CARZ-N 315 Explosion Isolation Flap Valve NW, Ex D St2

    ArtNo: 73008408

    直径 (mm)
    315
    Connection
    NW
    Dust Concentration in duct
    Any
    Explosion Class ATEX
    St2
    Kst (bar m/s)
    300
    Minimum vessel size, pull (m3)
    0,46
    Minimum vessel size, push (m3)
    0,46
    Maximum reduced pressurem, Pred (bar)
    0,5
    CARZ-N 350 Explosion Isolation Flap Valve FL, Ex D St2

    ArtNo: 73008409

    直径 (mm)
    350
    Connection
    FL
    Explosion Class ATEX
    St2
    Kst (bar m/s)
    300
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    1,6
    技术数据声明
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    CARZ-N 350 Explosion Isolation Flap Valve NW, Ex D St2

    ArtNo: 73008410

    直径 (mm)
    350
    Connection
    NW
    Explosion Class ATEX
    St2
    Kst (bar m/s)
    300
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    1,6
    技术数据声明
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    CARZ-N 400 Explosion Isolation Flap Valve FL, Ex D St2

    ArtNo: 73008411

    直径 (mm)
    400
    Connection
    FL
    Explosion Class ATEX
    St2
    Kst (bar m/s)
    300
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    1,6
    技术数据声明
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    CARZ-N 400 Explosion Isolation Flap Valve NW, Ex D St2

    ArtNo: 73008412

    直径 (mm)
    400
    Connection
    NW
    Explosion Class ATEX
    St2
    Kst (bar m/s)
    300
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    1,6
    技术数据声明
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    CARZ-N 315 Explosion Isolation Flap Valve QF, Ex D St2

    ArtNo: 73008413

    直径 (mm)
    315
    Connection
    QF
    Dust Concentration in duct
    Any
    Explosion Class ATEX
    St2
    Kst (bar m/s)
    300
    Minimum vessel size, pull (m3)
    0,46
    Minimum vessel size, push (m3)
    0,46
    Maximum reduced pressurem, Pred (bar)
    0,5
    CARZ-N 350 Explosion Isolation Flap Valve QF, Ex D St2

    ArtNo: 73008414

    直径 (mm)
    350
    Connection
    QF
    Explosion Class ATEX
    St2
    Kst (bar m/s)
    300
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    1,6
    技术数据声明
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration
    CARZ-N 400 Explosion Isolation Flap Valve QF, Ex D St2

    ArtNo: 73008415

    直径 (mm)
    400
    Connection
    QF
    Explosion Class ATEX
    St2
    Kst (bar m/s)
    300
    Minimum vessel size, pull (m3)
    0,9
    Minimum vessel size, push (m3)
    1,6
    技术数据声明
    LEL = Lower Explosion Limit = MEC Minimum Explosion Concentration

适用于本产品的配件 30

CARZ support frame suspended 160
ArtNo: 73001558

CARZ support frame suspended 160

CARZ support frame suspended 180
ArtNo: 73001559

CARZ support frame suspended 180

CARZ support frame suspended 200
ArtNo: 73001560

CARZ support frame suspended 200

CARZ support frame suspended 250
ArtNo: 73001561

CARZ support frame suspended 250

CARZ support frame suspended 315
ArtNo: 73001562

CARZ support frame suspended 315

CARZ support frame suspended 350
ArtNo: 73001563

CARZ support frame suspended 350

CARZ support frame suspended 400
ArtNo: 73001564

CARZ support frame suspended 400

CARZ support frame suspended 450
ArtNo: 73001565

CARZ support frame suspended 450

CARZ support frame suspended 500
ArtNo: 73001566

CARZ support frame suspended 500

CARZ support frame suspended 600
ArtNo: 73001567

CARZ support frame suspended 600

CARZ support frame suspended 710
ArtNo: 73001568

CARZ support frame suspended 710

CARZ support frame suspended 800
ArtNo: 73001569

CARZ support frame suspended 800

CARZ support frame suspended 900
ArtNo: 73001570

CARZ support frame suspended 900

Carz support frame suspended 1000
ArtNo: 73001571

Carz support frame suspended 1000

CARZ support frame suspended 1000
ArtNo: 73001572

CARZ support frame suspended 1000

CARZ support frame wall-hanging 160
ArtNo: 73001573

CARZ support frame wall-hanging 160

CARZ support frame wall-hanging 180
ArtNo: 73001574

CARZ support frame wall-hanging 180

CARZ support frame wall-hanging 200
ArtNo: 73001575

CARZ support frame wall-hanging 200

CARZ support frame wall-hanging 250
ArtNo: 73001576

CARZ support frame wall-hanging 250

CARZ support frame wall-hanging 315
ArtNo: 73001577

CARZ support frame wall-hanging 315

CARZ support frame wall-hanging 350
ArtNo: 73001578

CARZ support frame wall-hanging 350

CARZ support frame wall-hanging 400
ArtNo: 73001579

CARZ support frame wall-hanging 400

CARZ support frame wall-hanging 450
ArtNo: 73001580

CARZ support frame wall-hanging 450

CARZ support frame wall-hanging 500
ArtNo: 73001581

CARZ support frame wall-hanging 500

CARZ support frame wall-hanging 560
ArtNo: 73001582

CARZ support frame wall-hanging 560

CARZ support frame wall-hanging 630
ArtNo: 73001583

CARZ support frame wall-hanging 630

CARZ support frame wall-hanging 710
ArtNo: 73001584

CARZ support frame wall-hanging 710

CARZ support frame wall-hanging 800
ArtNo: 73001585

CARZ support frame wall-hanging 800

CARZ support frame wall-hanging 900
ArtNo: 73001586

CARZ support frame wall-hanging 900

CARZ support frame wall-hanging 1000
ArtNo: 73001587

CARZ support frame wall-hanging 1000
