710A, Configurable.

A powerful dust collector, excellent high vacuum for suction over long horizontal and vertical distance

Nederman Pre-separation and Vacuum Transportation Systems pre-separate and discharge dust and granulated material during vacuuming and vacuum transport.
A system can handle dry material like cement, fertilizers, grit, sand, as well as wet material. Collected material can be discharged into tanks, containers, big-bags, on to
conveyor belts, escalators etc.

The configuration of modules will be similare to 710A which are aimed for the toughest applications, for example handling a lot of abrasive and heavy material. The robustness of the unit and the power from the reliable ejector makes the unit very suitable for many applications where many industrial vacuum cleaners can not be used. For example to collect blasting material in blasting hall, sand recovery in foundries etc.

Your unit can be configured to meet your specific demands. Different ejectors can be used depending on the demand but also the availability of compressed air. The ejector can be placed on a stationary silo with filter.
Nederman has a range of different discharge valves that can be fitted to the silo for easy discharge of the collected material.

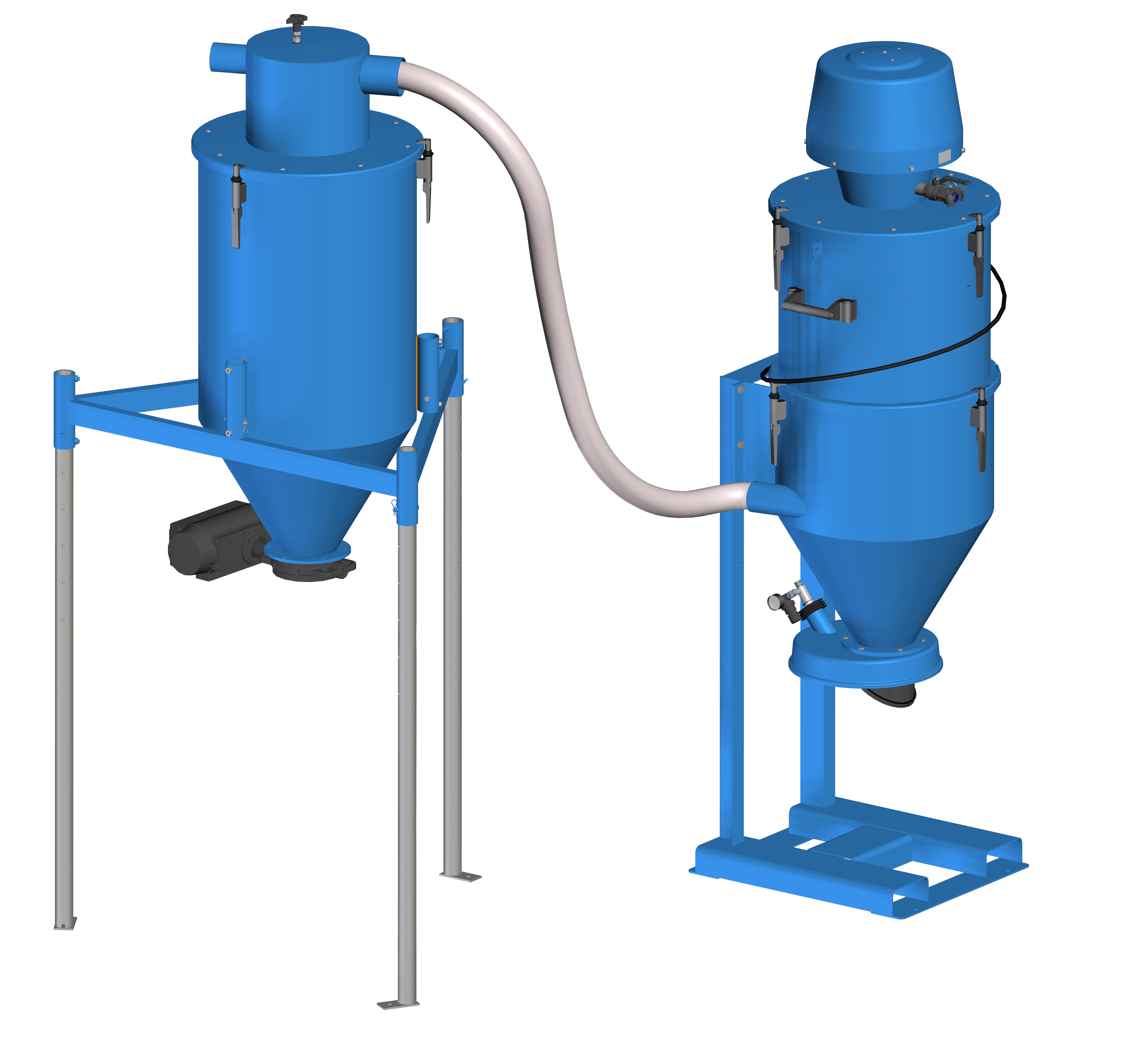

If handling larger quantities of material and in order to make the material handling more effective Nederman recommends using a pre separator before the vacuum unit.The 710A is a complete unit including a pre separator.

To configure your 710A you may only choose modules listed in this document and with mfc (module for configuration) in title.
Filterside:
1. Select ejectormodule depending on required vacuum and air flow.
2. Select filtermodule depending on filter capacity.
3. Select silomodule.
4. Select disposal option, bagholder and discharge valve.
5. Select frame.
Separatorside:
1. Select coarse grain separator.
2. Select silomodule.
3. Select discharge valve.
4. Select frame.
5. Select hose for connection between vaccum cleaner and separator.
6. Select joint sleeve depending on coarse grain separator and hose.
7. Select cleaning equipment.

Choose how to control your butterfly valve:
1. Electric controlled
- You need a namur valve, solenoid valve recommended for the ejector size you choose and a suitable control box.
2. Air controlled
- You need a namur valve.
Hose for air supply to the namur valve is not supplied by Nederman.

Ensure you meet all requirements for your modules

  • Robust and efficient self-cleaning filter
  • Very powerful and reliable ejector as vacuum producer
  • Suitable for heavy and/or abrasive material
  • Control system with many different functions is available as an accessory

    NE64, Ejectormodule with S200 lid and 2 quick couplings

    ArtNo: 43051000

    Compressed air requirement
    4,3 Nm3/min @ 7 bar
    Max airflow (m³/h)
    330 Nm3/h
    Noise level (dB(A))
    77
    Max vaccum (kPa)
    -68
    重量(公斤)
    18
    技术数据声明
    Recommended with filtermodule 43162101

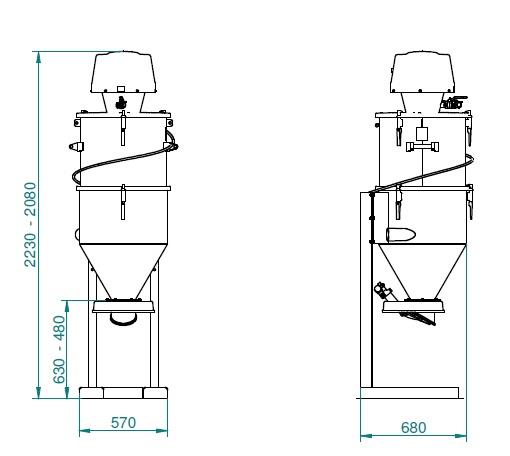

    Frame for 43461001, H=1325

    ArtNo: 43750001

    Silo S200 for leg mounting without inlet

    ArtNo: 43441001

    Coarse grain separator S200 d76/76 for plastic fasteners

    ArtNo: 43561001

    Coarse grain separator d102/76 adjustable for plastic fasteners

    ArtNo: 43661008

    NE74, Ejectormodule with S200 lid and 2 quick couplings

    ArtNo: 43051001

    Compressed air requirement
    5,3 Nm3/min @ 7 bar
    Max airflow (m³/h)
    318 Nm3/h
    Noise level (dB(A))
    75
    Max vaccum (kPa)
    -78
    重量(公斤)
    18
    技术数据声明
    Recommended with filtermodule 43162101
    NE76, Ejectormodule with S200 lid and 2 quick couplings

    ArtNo: 43051002

    Compressed air requirement
    5,4 Nm3/min @ 7 bar
    Max airflow (m³/h)
    690 Nm3/h
    Noise level (dB(A))
    78
    Max vaccum (kPa)
    -48
    重量(公斤)
    18
    技术数据声明
    Recommended with filtermodule 43164101
    NE96, Ejectormodule with S200 lid and 2 quick couplings

    ArtNo: 43051003

    Compressed air requirement
    8,6 Nm3/min @ 7 bar
    Max airflow (m³/h)
    660 Nm3/h
    Noise level (dB(A))
    78
    Max vaccum (kPa)
    -68
    重量(公斤)
    18
    技术数据声明
    Recommended with filtermodule 43164101
    Filtermodule NCF, 5,25 m2 filterarea, I S200 Vyon F. MFC

    ArtNo: 43164101

    除尘器类型
    蜡烛过滤器
    滤芯数量
    70
    重量(公斤)
    55
    Silo S200 for wall mounting, d76 suction inlet, with flange

    ArtNo: 43461007

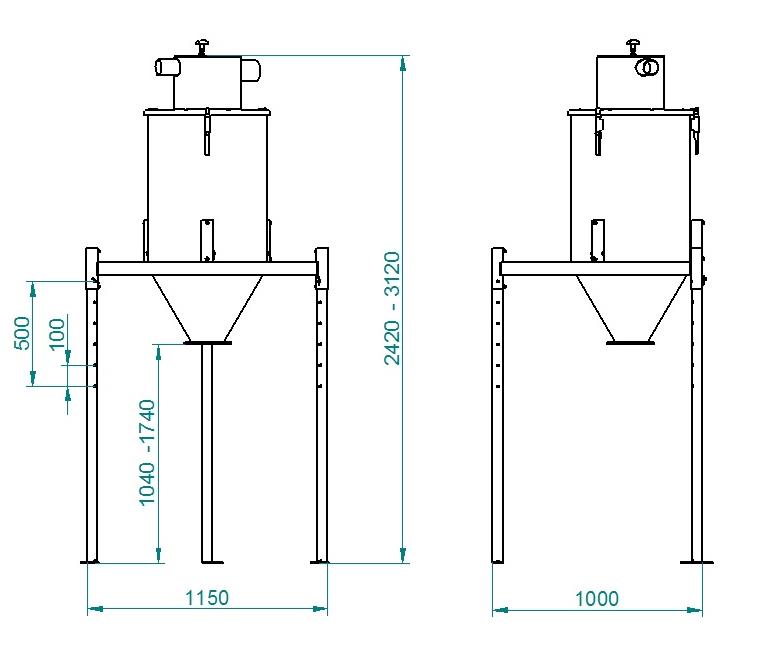

    Triangular frame for silo S200

    ArtNo: 43752001

    Leg straight 1500 mm

    ArtNo: 43756001

    技术数据声明
    Each configuration needs the quantity of three legs, so to get a complete product you need to order three pieces of chosen number
    Leg straight 2200 mm

    ArtNo: 43756100

    技术数据声明
    Each configuration needs the quantity of three legs, so to get a complete product you need to order three pieces of chosen number
    Stay-tube for legs L>2200 mm

    ArtNo: 43757001

    技术数据声明
    To be used with 43756100, order three pieces

适用于本产品的配件 67

钢碎屑吸嘴,Ø50 mm,消音入风口
ArtNo: 40150030

木屑/金属屑 吸嘴,D=50mm

Bin Level Iindicator (BLI) EX
ArtNo: 40375269

传感器 防爆型

Control S for NE 22-76
ArtNo: 43220001

控制器

Control S for NE 22-76
ArtNo: 43220026

控制器 用于NE 22-76

Control system for ejectors
ArtNo: 43220034

Control System for Ejectors

Control S for NE86-96
ArtNo: 43222008

控制器 用于NE86-96

Discharge valve manual
ArtNo: 43630001

手动卸料阀

Discharge valve, pneumatically operated
ArtNo: 43630100

气动卸料阀

Discharge valve with counterweight
ArtNo: 43630200

平衡卸料阀

Discharge valve Linatex d100 set with reducer for flange
ArtNo: 43630300

Discharge valve Linatex d100 set w/

Manually operated butterfly discharge valve
ArtNo: 43630400

Manual butterflyvalve kit, MFC

Pinch valve DN65
ArtNo: 43632001

脉冲阀DN65

Pinch valve DN80
ArtNo: 43632100

脉冲阀DN80

Pinch valve DN100
ArtNo: 43632200

脉冲阀DN100

Bagholder for 43630200 or 43631001
ArtNo: 43640001

收集袋支架 0920220/230

Bagholder for 43630100, for pneumatic discharge valve
ArtNo: 43640003

收集袋支架 用于0920210

Bagholder big bag with pneumatically operated discharge valve
ArtNo: 43640201

夹袋器 用于大型袋子

Bagholder for big bag, MFC
ArtNo: 43640217

Bagholder for big bag, MFC

Mountingplate for controlbox, S200
ArtNo: 43690001

安装平板0802010 +0801020

软管 PU12 Ø 51 L=7,5m w. 接头
ArtNo: 43832102

Hose PU12-51 L=7,5m w. couplings

Hose PU12 Ø 51 L=10m w. couplers
ArtNo: 43832200

PU管d51,10m

软管 PU12 Ø 51 L=20m
ArtNo: 43832300

PU管d51,20m

软管 PU12 Ø 51 L=5m
ArtNo: 43832500

Hose PU12-51 L=5m

软管 PU12 Ø 51 L=10m
ArtNo: 43832600

Hose PU12-51 L=10m

软管 PU12 Ø 63 L=10m
ArtNo: 43833001

PU管d63,10m

软管 PU12 Ø 63 L=20m
ArtNo: 43833100

PU管d63,20m

软管 PU12 Ø 63 L=5m
ArtNo: 43833200

Hose PU12-63 L=5m

软管 PU12 Ø 76 L=10m
ArtNo: 43834200

PU管d76,10m

软管 PU12 Ø 76 L=20m
ArtNo: 43834300

PU 管 d76 20m

地面吸嘴,宽500 mm 带尼龙小轮, Ø51
ArtNo: 43840150

地板吸头 d51/500

地面吸嘴,宽400 mm 带橡胶大轮,Ø51
ArtNo: 43840250

地板吸头 d51/400/65

地面吸头,宽500mm, Ø63
ArtNo: 43840400

地板吸头 d63/500

地板吸头 d63/600
ArtNo: 43840450

地板吸头 d63/600

地面吸嘴,宽400 mm 不带轮,干式抽吸,Ø51
ArtNo: 43840550

带毛刷地板吸头 d51/400

清洁管道,长1100 mm, Ø51 mm
ArtNo: 43842001

抽排管 d51 pehd-el 1m

弯头, Ø51 mm
ArtNo: 43842150

抽排管防静电弯头 d51

抽排管道 铝 Ø63
ArtNo: 43843001

抽排铝管 d63

抽排铝管弯头 d63
ArtNo: 43843050

抽排铝管弯头 d63

钢旋转街头 d63
ArtNo: 43843100

钢旋转街头 d63

可拆卸吸嘴,长910 mm, Ø51
ArtNo: 43850001

强力吸头 d51

可拆卸吸嘴,长910 mm, 镀锌, Ø63
ArtNo: 43850050

强力吸头 d63

可拆卸吸嘴,长910 mm, d76, 镀锌
ArtNo: 43850100

强力吸头 d76

可拆卸吸嘴,用于地面,长1200 mm, Ø63 mm
ArtNo: 43850200

强力吸头带手柄 d63

可拆卸吸嘴,带手柄,Ø76
ArtNo: 43850250

强力吸头带手柄 d76

开槽吸嘴,长500 mm Ø51
ArtNo: 43851050

铁屑抽吸装置 d51 l500

开槽手持吸嘴,长500 mm, Ø63
ArtNo: 43851100

铁屑抽吸装置 d63 l500

开槽吸嘴,长1000 mm Ø51
ArtNo: 43851150

铁屑抽吸装置 d51 l1000

开槽手持吸嘴,长1000 mm, Ø63
ArtNo: 43851200

铁屑抽吸装置 d63 11000

开槽手持吸嘴,长1000 mm, Ø76
ArtNo: 43851250

铁屑抽吸装置 d76 11000

手持吸嘴,硬刷Ø90mm, Ø51
ArtNo: 43860001

手持抽吸头带毛刷d51

锯齿形吸嘴 宽130 mm, Ø51
ArtNo: 43861001

手持抽吸头PPd51

锥形吸嘴 长250 mm, Ø51
ArtNo: 43862001

手持锥形抽吸头d51

软管接头 d50
ArtNo: 43880050

软管接头 d50

软管接头 d63
ArtNo: 43880100

软管接头 d63

软管接头 d76, 耐酸不锈钢
ArtNo: 43880150

软管锥形接头 d76

变径d63-51
ArtNo: 43880250

软管锥形变径 d63-51

变径d76-51, 耐酸不锈钢
ArtNo: 43880300

软管锥形变径 d76-51

变径d76-63, 耐酸不锈钢
ArtNo: 43880350

软管锥形变径 d76-63

Joint sleeve d98-114/d70-88
ArtNo: 43884462

Joint sleeve d98-114/d70-88

Joint sleeve d65-75
ArtNo: 43884463

Joint sleeve d65-75

Joint sleeve d75-89/d53-63mm
ArtNo: 43884464

Joint sleeve d75-89/d53-63mm
