NFSZ3000 baghouse dust collector

Baghouse dust collector with rotary valve or screw conveyor

Baghouse dust collector designed for medium air volumes and can handle large volumes of material concentrations.

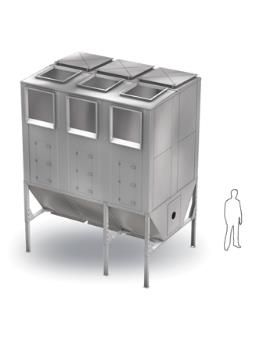

The NFSZ3000 baghouse dust collector is designed for medium air volumes and can handle large material concentrations. It is a modular dust collector made of galvanised steel sheet with a telescopic support, suitable for outdoor use.

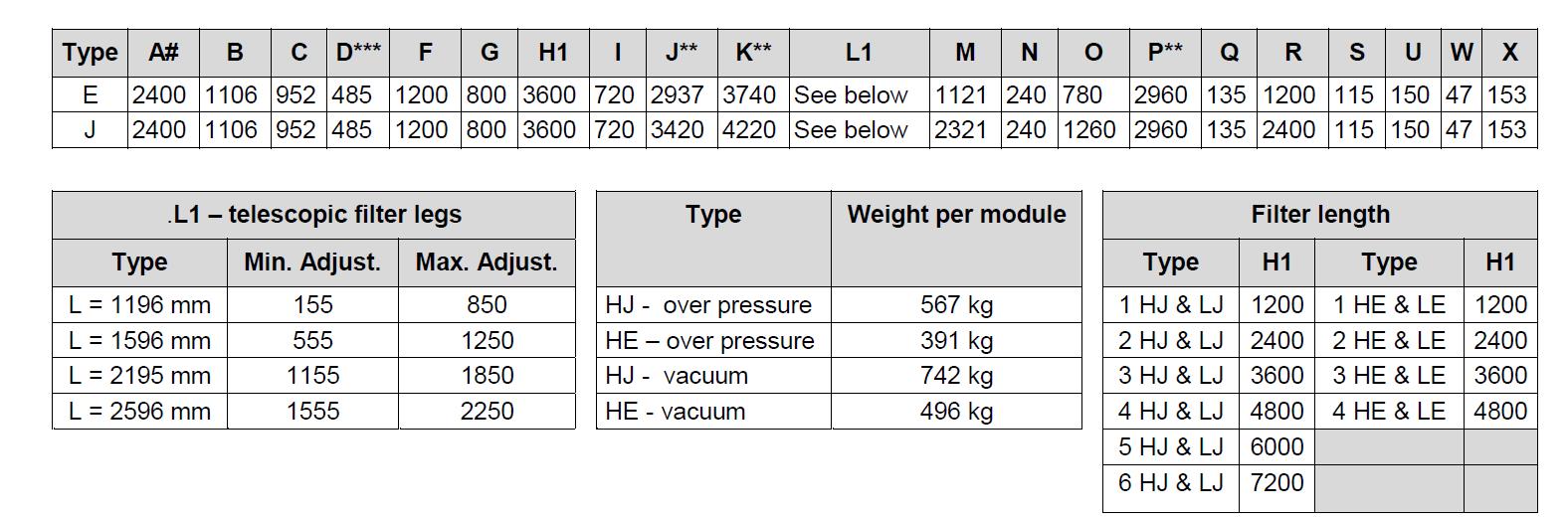

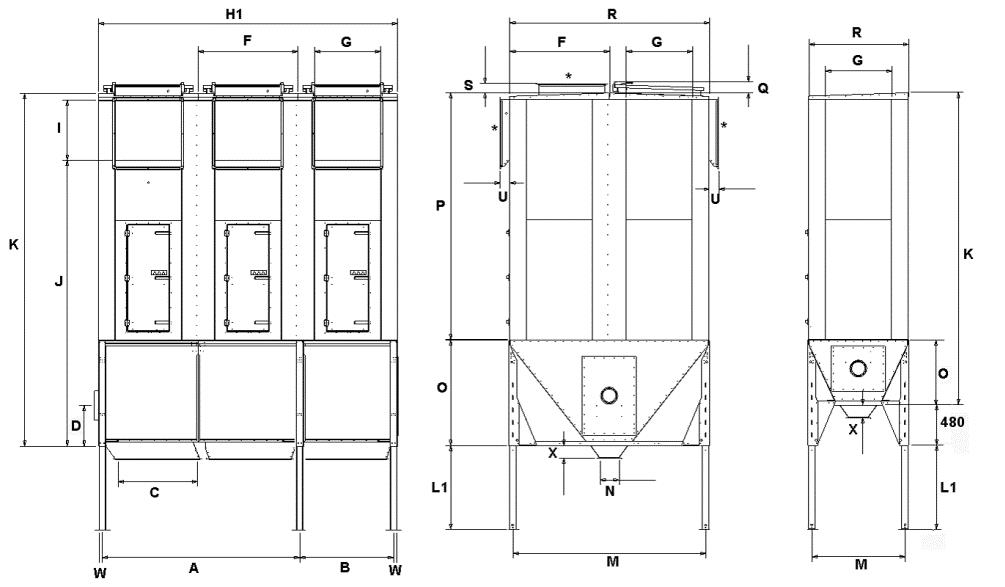

Available in two different widths, type E 1200 mm (47") and type J 2400 mm(94"). Each module of the filter design is fitted with a combined inspection and explosion relief door. Filter cleaning with regeneration fans. The filter is fitted with the unique patented SUPERBAG.

The medium-sized/large particles are separated in the filter hopper and the inlet section (optional), and the air is then distributed to the filter bags. The collected material is discharged via the rotary valve. The rotary valve is used for non-pressurised material discharge to a silo, container or separate transport system. The filter can be supplied either for continuous operation or with a break to clean the filter bags every four hours.
•Handles air volumes from 1 500-65 000 m3/h (883-38,000 CFM)
•Wide range of rotary valves/screw conveyors for material discharge
•ATEX-certified for St1 and St2 dust with a Kst value up to 300 bar m/s
•Compact design
•Suitable for handling large volumes of air with heavy material contamination
•Designed for continuous operation or operation with 15 minute breaks for cleaning, approx. every four hours
•For mounting on the ground or on the roof
•Overpressure or vacuum versions up to 5 000 Pa
•Explosion relief upwards or sideways
•Powerful online cleaning with efficient regeneration fans
•Patented antistatic polyester SUPERBAG filter bags
•Easy to install on site and extend when required
•Low energy consumption
