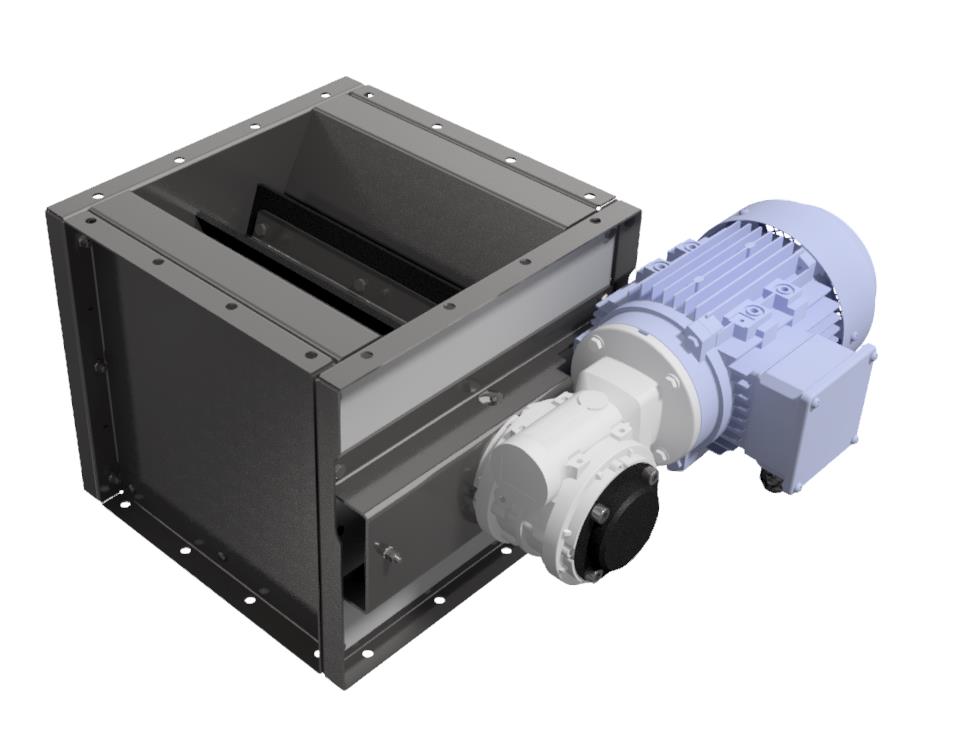

NRS 3 rotary valves

Continuous emptying of the dust collector hopper.

The NRS type rotary valve is used to transfer material between two separate systems. In pneumatic conveying systems, discharge is usually required from the filter or cyclone to the silo, at atmospheric pressure. This is an ideal application for the NRS type rotary valve.

The rotary valve can be used for emptying of several non-adhesive material types. Max. particle size for the NRS3 is 3 x 3 x 10 mm (.1 x .1 x .4 in.).
The rotary valve should not work with highly abrasive dust.

  • Robust construction.
  • Long lifetime. The rotor is equipped with an elastic clutch, which reduces the possibility of damage in use and maximizes the life of the unit.

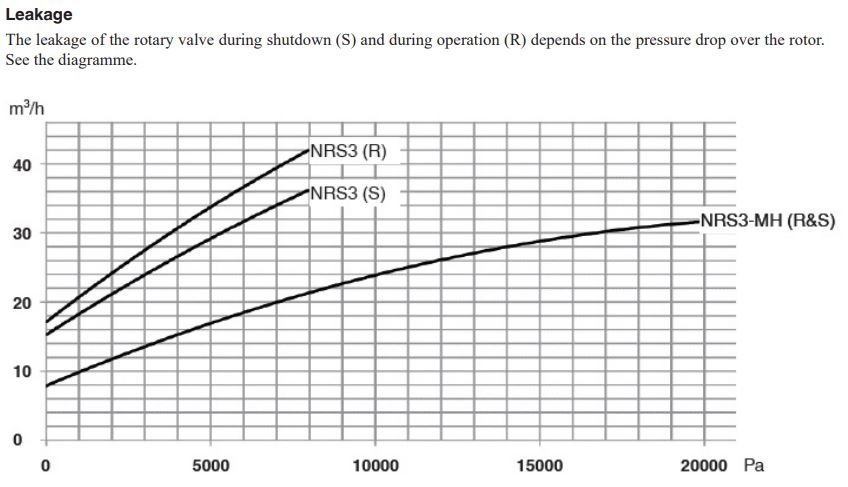

  • Effective air lock between the inlet and outlet provided due to the special rubber blends.

技术参数
应用 粉尘
证书 CE
安装 室内, 室外
材料 Heavy steel plate
噪音水平(分贝) < 70
工作温度 Max. 50°C
适用于易爆粉尘 No
    Rotary Valve NRS3-HH-7

    ArtNo: 5502156

    功率 (kW)
    0,18
    重量(公斤)
    32
    Rotary Valve NRS3-MH Complete

    ArtNo: 5505391

    功率 (kW)
    0,37
    重量(公斤)
    40
    Rotary Valve NRS3-HH-0 without motor

    ArtNo: 5502337

    功率 (kW)
    None
    重量(公斤)
    22
